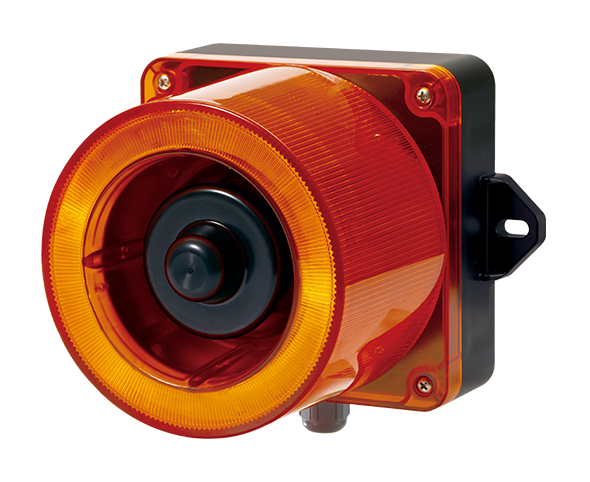

QWCD50

LED Strobe Signal Beacon & Electronic Sounder Combinations
Weatherproof LED Strobe Beacon Sounder / Audible & Visual Alarm
Max.123dB

Product Feature

• By using the horn cover as a light globe, the size of the product has been reduced significantly
• Easy device customization with built in sound selection function, volume adjustment function and an SDcard slot for user inputted tones
• 31 available tones that can be selected for a variety of environments
• The user can select their own tones by inputting the MP3 file directly into the SDcard
• 31 pre-recorded tones available via binary input
• Suitable for use in environments that require a tight seal and superior dust protection rated IP66
• Can be used in extreme environmental conditions such as the arctic where temperatures can reach -50°C
• Flashing rate : 60-80 flashes/min
• Ambient operating temperature :
• -30°C to +50°C(Standard)
• -50°C to +50°C(Low temperature type only DC)
• -20°C to +50°C(SD Card type)
• Compliant with RoHS directive

Specification

Model number	Voltage	Current	Sound Pattern and Volume	Certificates	Weight	Color
QWCD50 Built-in standard sound	DC12V~24V	Max.4.65A	•• Bit Input : 5Ch(SDcard) • Binary Input : 31Ch • Warning Sounds : Max.123dB(Based on Ch16) • MP3 Messages : Max.115dB	CE, UL	2.70kg	R-Red  A-Amber  G-Green  B-Blue
	AC110V~220V	Max.900mA
QWCD50SD MP3	DC12V~24V	Max.4.65A			3.00kg
	AC110V~220V	Max.900mA

Sound Tone Combination of Standard Product

No.	Sound Category	Sound	No.	Sound Category	Sound
1	Rel rel rel	Rel rel rel	17	Fast Ambulance PI-PO	Fast Ambulance PI-PO
2	Slow Ambulance PI-PO	Slow Ambulance PI-PO	18	Slow Ambulance PI-PO	Slow Ambulance PI-PO
3	Oit Oit warning sound	Oit Oit warning sound	19	Ri ro ri ro warning sound	Ri ro ri ro warning sound
4	Emergency WA-U(Yelp)	Emergency WA-U(Yelp)	20	Repeat Di-o 3 times	Repeat Di-o 3 times
5	Pi- buzzer	Pi- buzzer	21	Fire.A-ANG	Fire.A-ANG
6	7 Short PI. / 1 Long	7 Short PI. / 1 Long	22	Ambulance PI-PO	Ambulance PI-PO
7	Pi o Pi o	Pi o Pi o	23	Slow Fire.A-ANG	Slow Fire.A-ANG
8	Phone Ring	Phone Ring	24	Pi-pi- buzzer low frequency	Pi-pi- buzzer low frequency
9	Pi- buzzer	Pi- buzzer	25	Pi-pi- buzzer high frequency	Pi-pi- buzzer high frequency
10	Pi pi pi short	Pi pi pi short	26	Di-di- buzzer high frequency	Di-di- buzzer high frequency
11	Di o Di o 2 tones buzzer	Di o Di o 2 tones buzzer	27	Di-di- buzzer low frequency	Di-di- buzzer low frequency
12	Oit Oit warning sound	Oit Oit warning sound	28	Rising Po-ong	Rising Po-ong
13	Slow Ambulance PI-PO	Slow Ambulance PI-PO	29	Fast Ambulance PI-PO	Fast Ambulance PI-PO
14	Slow Di o Di o	Slow Di o Di o	30	Rising frequency	Rising frequency
15	Fast Li o li o	Fast Li o li o	31	Repeat A-ANG	Repeat A-ANG
16	Fire.A-ANG	Fire.A-ANG		–
