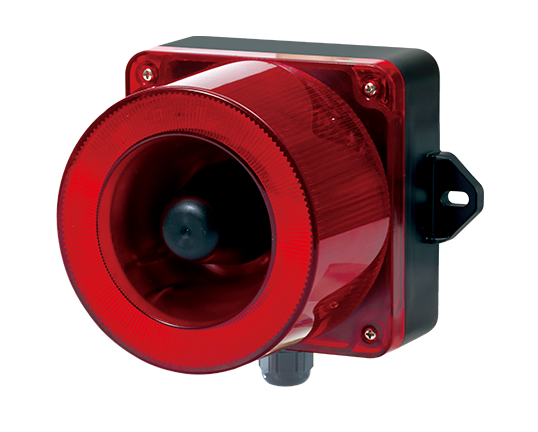

QWCD35
LED Strobe Signal Beacon & Electronic Sounder Combinations
Weatherproof LED Strobe Beacon Sounder / Audible & Visual Alarm
Max.115dB
Product Feature
- By using the horn cover as a light globe, the size of the product has been reduced significantly
- Easy device customization with built in sound selection function, volume adjustment function and an SDcard slot for user inputted tones
- 31 available tones that can be selected for a variety of environments
- The user can select their own tones by inputting the MP3 file directly into the SDcard.
- 31 pre-recorded tones available via binary input
- Suitable for use in environments that require a tight seal and superior dust protection rated IP66
- Can be used in extreme environmental conditions such as the arctic where temperatures can reach -50°C
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature :
- -30°C to +50°C(Standard)
- -50°C to +50°C(Low temperature type only DC)
- -20°C to +50°C(SD Card type)
- Compliant with RoHS directive
Specification
| Model number | Voltage | Current | Sound Pattern and Volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| QWCD35 Built-in standard sound | DC12V~24V | Max.1.35A | • Bit Input : 5Ch(SDcard) • Binary Input : 31Ch • Warning Sounds : Max.115dB • MP3 : Max.112dB | CE, CCS, UL | 1.10kg |  R-Red A-Amber G-Green B-Blue |
| AC110V~220V | Max.350mA | |||||
| QWCD35SD MP3 | DC12V~24V | Max.1.35A | 1.0kg | |||
| AC110V~220V | Max.350mA |
※ AC type model has a free-voltage range of 100V-240V.
※ UL Listed: DC12V-24V
※ When playing MP3 files, there may be difference of volume depending on user’s audio file type.
※ Please refer to the operating manual for applicable sd card.
Sound Tone Combination of Standard Product
| No. | Sound Category | Sound | No. | Sound Category | Sound |
|---|---|---|---|---|---|
| 1 | Rel rel rel | 17 | Fast Ambulance PI-PO | ||
| 2 | Slow Ambulance PI-PO | 18 | Slow Ambulance PI-PO | ||
| 3 | Oit Oit warning sound | 19 | Ri ro ri ro warning sound | ||
| 4 | Emergency WA-U(Yelp) | 20 | Repeat Di-o 3 times | ||
| 5 | Pi- buzzer | 21 | Fire.A-ANG | ||
| 6 | 7 Short PI. / 1 Long | 22 | Ambulance PI-PO | ||
| 7 | Pi o Pi o | 23 | Slow Fire.A-ANG | ||
| 8 | Phone Ring | 24 | Pi-pi- buzzer low frequency | ||
| 9 | Pi- buzzer | 25 | Pi-pi- buzzer high frequency | ||
| 10 | Pi pi pi short | 26 | Di-di- buzzer high frequency | ||
| 11 | Di o Di o 2 tones buzzer | 27 | Di-di- buzzer low frequency | ||
| 12 | Oit Oit warning sound | 28 | Rising Po-ong | ||
| 13 | Slow Ambulance PI-PO | 29 | Fast Ambulance PI-PO | ||
| 14 | Slow Di o Di o | 30 | Rising frequency | ||
| 15 | Fast Li o li o | 31 | Repeat A-ANG | ||
| 16 | Fire.A-ANG | – |
