Products > Advantech > Intelligent Connectivity > IEC61850-3 Ethernet Switches

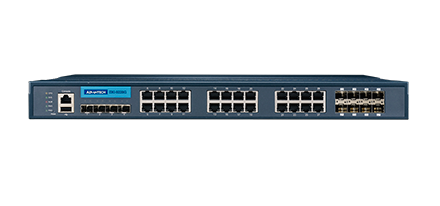

EKI-9228G-8CMI

IEC61850-3 28GE Managed Ethernet Switch, 48DC

Main Features

16 x Gigabit RJ-45 ports + 4 Gigabit x SFP ports + 8 x Gigabit Combo ports
SFP socket for Easy and Flexible Fiber Expansion
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
Dual Power input and 2 relay output
-40 ~ 85˚C wide-range operating temperature

Introduction

The EKI-9228G series meet IEC 61850-3 certification, designed with 16 Gigabit ports, 4 Gigabit SFP ports and 8 Gigabit com ports for abundant and flexible connection ports and contain dual power inputs to ensure system stability and 2 relay output for greater user flexibility.

Specifications
Part Number		EKI-9228G-8CMI-AE
Certification	Smart Grid	IEC 61850-3
	EMC	EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 4), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 5)
	EMI	CE, FCC Class A
	Freefall	IEC 60068-2-32
	Safety	UL 61010
	Shock	IEC 60068-2-27
	Vibration	IEC 60068-2-6
Product Category	IEC61850-3 Switch	Yes
Environment	Operating Temperature (X)	-40 ~ 85°C (-40 ~ 185°F)
	Relative Humidity (Non-condensing)	10 ~ 95%
	Storage Temperature (X)	-40 ~ 85°C (-40 ~ 185°F)
Mechanism	Dimensions (W x H x D)	442 x 44 x 352 mm
	Mounting (X)	1U 19" Rack mount
	Weight	6kg
	Enclosure	Metal
	IP Rating	IP30
MTBF	Method	Telcordia(Relax), GB
MTBF	Time	TBD
Power Requirement (X)	Connectors	3-pin removable screw terminal (power), 4-pin removable screw terminal (relay )
	Operating Current	0.4A @ 48VDc (system)
	Operating Voltage	48 VDC
	Power Consumption	19.21W (system)
	Reverse Polarity	Present
Warranty	Warranty Period	5 years
* Port Configuration	Fiber Port Description	4
	Fiber Port Interface (X)	SFP
	Fiber Transmission Distance (X)	-
	Ethernet Port Description	16 x 10/100/1000Base-T(X)
	Ethernet Transmission Distance (X)	100 m
	Ethernet PoE Port Number	-
Switch Properties	Jumbo Frame	9,216 bytes
	MAC Table Size	16k
	Packet Buffer Size	1.5M bit
I/O (X)	Transmission Speed	10/100/1000Base-T(X)
Communication (XX)	IEEE Standard	IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
Operating System (X)	Temperature (Operating)	-40 ~ 85°C (-40 ~ 185°F)
Power Supply (X)	Power Input	Dual 90~264VAC/88~370VDC
General (X)	Ethernet Connectors	16 x RJ-45 + 4 x SFP+ 8 x RJ-45/SFP combo ports
Interface (...)	Ports Number	28
