EKI-9228G-8COI
IEC61850-3 28GE Managed Ethernet Switch, 90 ~ 264VAC/88 ~ 370VDC


Main Features

  • 16 x Gigabit RJ-45 ports + 4 Gigabit x SFP ports + 8 x Gigabit Combo ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
  • Dual Power input and 2 relay output
  • -40 ~ 85˚C wide-range operating temperature





Introduction
The EKI-9228G series meet IEC 61850-3 certification, designed with 16 Gigabit ports, 4 Gigabit SFP ports and 8 Gigabit com ports for abundant and flexible connection ports and contain dual power inputs to ensure system stability and 2 relay output for greater user flexibility.





Specifications
Part Number EKI-9228G-8COI-AE
Certification Smart Grid IEC 61850-3
EMC EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 4), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 5)
EMI CE, FCC Class A
Freefall IEC 60068-2-32
Safety UL 61010
Shock IEC 60068-2-27
Vibration IEC 60068-2-6
Environment Operating Temperature (X) -40 ~ 85°C (-40 ~ 185°F)
Relative Humidity (Non-condensing) 10 ~ 95%
Storage Temperature (X) -40 ~ 85°C (-40 ~ 185°F)
Mechanism Dimensions (W x H x D) 442 x 44 x 352 mm
Mounting (X) 1U 19" Rack mount
Weight 6kg
Enclosure Metal
IP Rating IP30
MTBF Method Telcordia(Relax), GB
Time TBD
Power Requirement (X) Connectors 3-pin removable screw terminal (power), 4-pin removable screw terminal (relay )
Operating Current 0.17A @ 110VAC (system)
Operating Voltage 90~264VAC/88~370VDC
Power Consumption 19.24W (system)
Reverse Polarity Present
Product Category IEC61850-3 Switch Yes
Warranty Warranty Period 5 years
* Port Configuration Fiber Port Description 4
Fiber Port Interface (X) SFP
Fiber Transmission Distance (X) -
Ethernet Port Description 16 x 10/100/1000 Base-T(X)
Ethernet Transmission Distance (X) 100 m
Ethernet PoE Port Number -
Switch Properties Jumbo Frame 9,216 bytes
MAC Table Size 16k
Packet Buffer Size 1.5M bit
I/O (X) Transmission Speed 10/100/1000Base-T(X)
Communication (XX) IEEE Standard IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
Operating System (X) Temperature (Operating) -40 ~ 85°C (-40 ~ 185°F)
Power Supply (X) Power Input Dual 90~264VAC/88~370VDC
General (X) Ethernet Connectors 16 x RJ-45 + 4 x SFP+ 8 x RJ-45/SFP combo ports
Interface (...) Ports Number 28

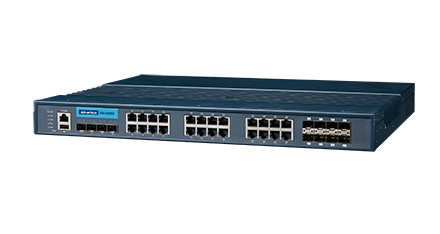

* Product image is an approximate guide only.
