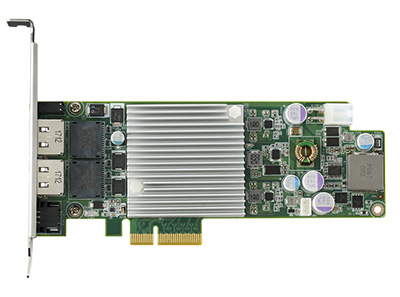

PCIE-1182

2-port PCI Express 10 GigE Vision Frame Grabber

Main Features

Intel server-grade X550-AT2 10GbE MAC+PHY Ethernet Controller
Supports Jumbo frame (16,000 byte) and link aggregation
PCI Express x4 compliant, low profile
PoE+ compliant, dual channel 12VDC output
Programmable PoE+ power on/off control
Powered Device (PD) auto detection and classification

Introduction

PCIe-1181/1182 series is PCI Express® 10 GigE Vision frame grabber which supports 1 or 2 independent 10,000/5,000/1,000/100 BaseT(X), 802.3at (PoE+)compliant Ethernet ports. With 12 VDC power output, the PCIE-1181/PCIE-1182 can provides up to 24 watts for each of 2 12VDC output port.
