Products > Advantech > Human Machine Interface > Configurable System

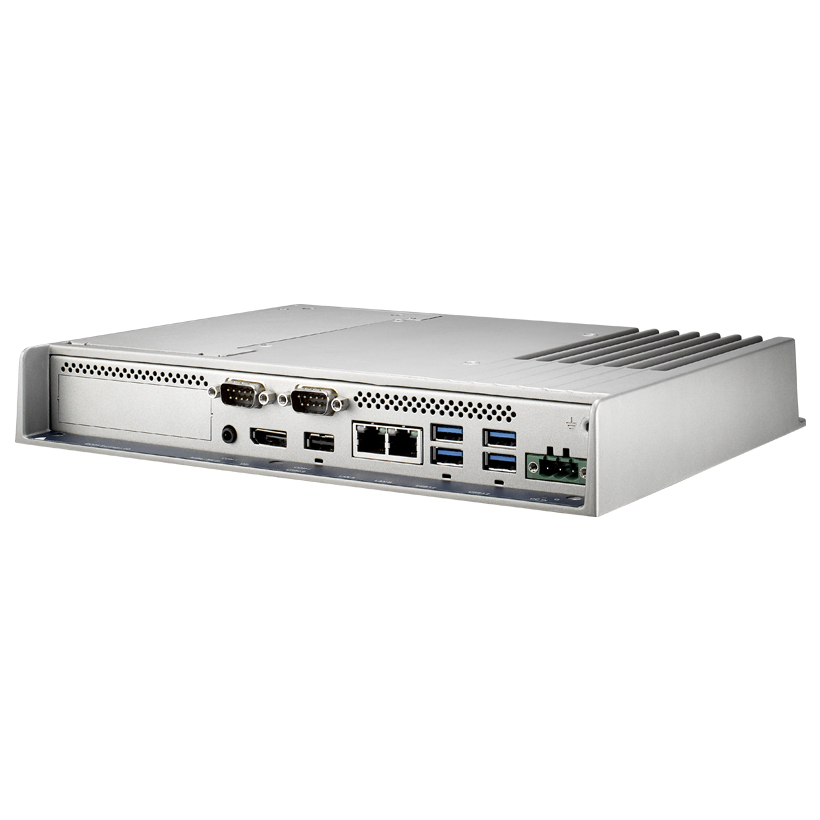

TPC-B510

Modular Series - Computing Box Module with 8th Gen. Intel® Core™ i3/i5/i7 Processor

Main Features

- Modular Computing Box powered by 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processors
- Built-in 8 GB DDR4 SO-DIMM with dual channel memory slots support up to 32GB
- Expansions with two M.2 slots and full-size Mini PCIe
- Compact, fanless embedded system with chassis grounding protection
- Modular FPM-Display modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1" features 5-wire resistive touch)

Introduction

TPC-B510 is powered by 8th Gen. Intel Core i3/i5/i7, delivering high performance as a powerful control panel. It features bountiful I/Os, expansions with M.2 NVME SSD. Paired with modular FPM-Display module, an IP66-grade powerful Modular Panel PC ranging from 12.1" to 23.8" is born.

Specifications
Part Number		TPC-B510-833AE	TPC-B510-853AE	TPC-B510-873AE
Environment	Operating Temperature	-10~55 °C (14~131 °F)	-10~55 °C (14~131 °F)	-10~55 °C (14~131 °F)
	Storage Temperature	-20~70 °C (-4~158 °F)	-20~70 °C (-4~158 °F)	-20~70 °C (-4~158 °F)
	Vibration Protection	1 Grms	1 Grms	1 Grms
General	Humidity (Operating)	10~95% RH (non-condensing)	10~95% RH (non-condensing)	10~95% RH (non-condensing)
Hardware	Certification	CB/UL, CE, FCC Class A, CCC, BSMI	CB/UL, CE, FCC Class A, CCC, BSMI	CB/UL, CE, FCC Class A, CCC, BSMI
	CPU	8th Gen. Intel® Core™ i3-8145UE 2.20 GHz Dual-Core	8th Gen. Intel® Core™ i5-8365UE 1.60 GHz Quad-Core	8th Gen. Intel® Core™ i7-8665UE 1.70 GHz Quad-Core
	Expansion	1 x full-size mPCIe slot	1 x full-size mPCIe slot	1 x full-size mPCIe slot
	Hardware Security	TPM 2.0	TPM 2.0	TPM 2.0
	I/O	2 x RS-232/422/485, 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor Slot, 1 x DP, 1 x Line out	2 x RS-232/422/485, 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor Slot, 1 x DP, 1 x Line out	2 x RS-232/422/485, 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor Slot, 1 x DP, 1 x Line out
	LAN	2 x 10/100/1000 Mbps	2 x 10/100/1000 Mbps	2 x 10/100/1000 Mbps
	Memory	1 x SO-DIMM with 8 GB DDR4 2133 MHz	1 x SO-DIMM with 8 GB DDR4 2133 MHz	1 x SO-DIMM with 8 GB DDR4 2133 MHz
	OS Support	Microsoft® Windows 10 LTSC, Linux, Android	Microsoft® Windows 10 LTSC, Linux, Android	Microsoft® Windows 10 LTSC, Linux, Android
	Power Input	24 VDC ±20%	24 VDC ±20%	24 VDC ±20%
	Storage	1 x NVMe/SATA M.2 SSD slot (2280 M-key), 1 x SATA M.2 SSD slot (2242 B-key), 1 x 2.5" SSD/HDD	1 x NVMe/SATA M.2 SSD slot (2280 M-key), 1 x SATA M.2 SSD slot (2242 B-key), 1 x 2.5" SSD/HDD	1 x NVMe/SATA M.2 SSD slot (2280 M-key), 1 x SATA M.2 SSD slot (2242 B-key), 1 x 2.5" SSD/HDD
Mechanical	Dimension (W x H x D)	269 x 203 x 40 mm	269 x 203 x 40 mm	269 x 203 x 40 mm
	Mounting	Panel, Wall, Stand, VESA	Panel, Wall, Stand, VESA	Panel, Wall, Stand, VESA
	Weight (Net)	4.5 kg	4.5 kg	4.5 kg
