Products > Advantech > Human Machine Interface > HMI

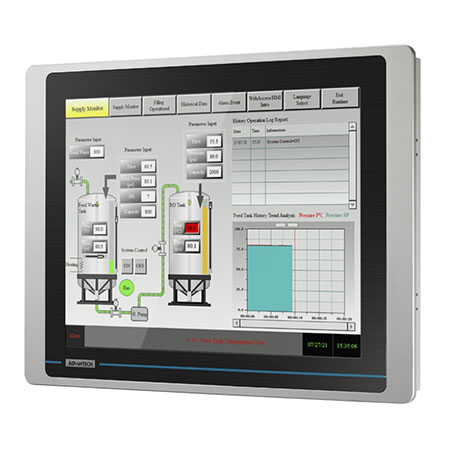

WOP-215K
[RTOS] 15" XGA Operator Panel Installed with HMINavi Software


Main Features

- ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
- Supports over 500+ PLC industrial communication protocols
- Backup memory 128KB for retaining critical data or parameter
- Supports the HMINavi Designer development tool free on Windows 10
- Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
- No limitation on the internal I/Os points used for variety application
- Easy to switch one application to different LCD sizes in seconds
- Supports operation in both landscape and portrait mode
- Panel mount design ensures easy installation and IP66-rated front panel




Introduction

The WOP-200K series systems are available with LCDs of varying size (from 4.3" to 15"). Additionally, WOP-200K systems are bundled with HMINavi software – a human-machine interface designed for HMI applications, powerful connectivity drivers support 500+ variety market brands of PLCs.




Specifications

PartNumber WOP-215K-NAE
Environment
Ingress Protection Front Panel IP66
Operating Temperature -20~60 °C (14~140 °F)
Relative Humidity 5~95% RH (non-condensing)
Vibration Protection 1 Grms, random
General
Connectors 1 x RJ45, 1 x DB9-Female
Programming Language HMINavi Designer
Protocol 500+ PLC Drivers
Rated Voltage 24 VDC (±10%)
Hardware
Certification CE, FCC class A, UL-61010
CPU ARM9™ 32-bit RISC processor
LAN 1 x 10/100 Mbps
Memory 1 x 64 MB SDRAM
OS Support RTOS
Power Consumption 20 W @ 24 VDC
Power Requirement 24 VDC ±10%
Storage 1 x 128M NAND Flash
I/O Interface
Serial Ports 1 x RS-232, 1 x RS-422/485, 1 x RS-485
USB Ports 1 x USB (Host), 1 x USB (Client)
LCD Display
Backlight Life (hrs) 20,000
Display Size 15"
Luminance (cd/m2) 350
Max. Resolution 1024 x 768
Mechanical
Dimension (W x H x D) 399.1 x 297.6 x 57.3 mm
Enclosure PC + ABS
Mounting Panel
Weight (Net) 3 kg (6.61 lb)
Touchscreen
Touch Type 4-wire resistive





* Product image is an approximate guide only.
