Products > Advantech > Human Machine Interface > HMI

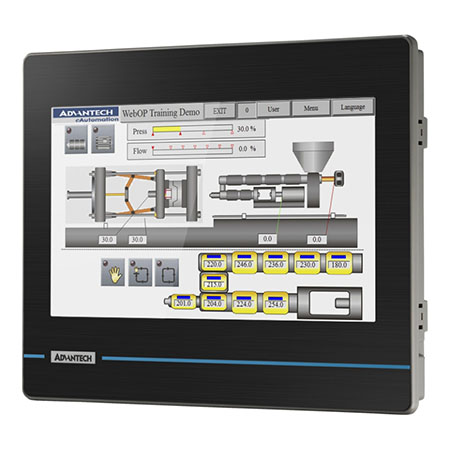

WOP-210K

[RTOS] 10.1" WSVGA Operator Panel Installed with HMINavi Software

Main Features

- ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
- Supports over 500+ PLC industrial communication protocols
- Backup memory 128KB for retaining critical data or parameter
- Supports the HMINavi Designer development tool free on Windows 10
- Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
- No limitation on the internal I/Os points used for variety application
- Easy to switch one application to different LCD sizes in seconds
- Supports operation in both landscape and portrait mode
- Panel mount design ensures easy installation and IP66-rated front panel

Introduction

The WOP-200K series systems are available with LCDs of varying size (from 4.3" to 15"). Additionally, WOP-200K systems are bundled with HMINavi software – a human-machine interface designed for HMI applications, powerful connectivity drivers support 500+ variety market brands of PLCs.

Specifications
PartNumber	WOP-210K-NAE
Environment
Ingress Protection	Front Panel IP66
Operating Temperature	-20~60 °C (14~140 °F)
Relative Humidity	5~95% RH (non-condensing)
Vibration Protection	1 Grms, random
General
Connectors	1 x RJ45, 1 x DB9-Female
Programming Language	HMINavi Designer
Protocol	500+ PLC Drivers
Rated Voltage	24 VDC (±10%)
Hardware
Certification	CE, FCC class A, UL-61010
CPU	ARM9™ 32-bit RISC processor
LAN	1 x 10/100 Mbps
Memory	1 x 64 MB SDRAM
OS Support	RTOS
Power Consumption	20 W @ 24 VDC
Power Requirement	24 VDC ±10%
Storage	1 x 128M NAND Flash
I/O Interface
Serial Ports	1 x RS-232, 1 x RS-422/485, 1 x RS-485
USB Ports	1 x USB (Host), 1 x USB (Client)
LCD Display
Backlight Life (hrs)	20,000
Display Size	10.1"
Luminance (cd/m2)	350
Max. Resolution	1024 x 600
Mechanical
Dimension (W x H x D)	270.1 x 212.1 x 43.4 mm
Enclosure	PC + ABS
Mounting	Panel
Weight (Net)	1.1 kg (2.43 lb)
Touchscreen
Touch Type	4-wire resistive
