WOP-208K
[RTOS] 8" SVGA Operator Panel Installed with HMINavi Software


Main Features


- ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
- Supports over 500+ PLC industrial communication protocols
- Backup memory 128KB for retaining critical data or parameter
- Supports the HMINavi Designer development tool free on Windows 10
- Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
No limitation on the internal I/Os points used for variety application
Easy to switch one application to different LCD sizes in seconds
Supports operation in both landscape and portrait mode
Panel mount design ensures easy installation and IP66-rated front panel



Introduction

The WOP-200K series systems are available with LCDs of varying size (from 4.3" to 15"). Additionally, WOP-200K systems are bundled with HMINavi software – a human-machine interface designed for HMI applications, powerful connectivity drivers support 500+ variety market brands of PLCs.




Specifications

PartNumber WOP-208K-NAE
Environment
Ingress Protection Front Panel IP66
Operating Temperature -20~60 °C (14~140 °F)
Relative Humidity 5~95% RH (non-condensing)
Vibration Protection 1 Grms, random
General
Connectors 1 x RJ45, 1 x DB9-Female
Programming Language HMINavi Designer
Protocol 500+ PLC Drivers
Rated Voltage 24 VDC (±10%)
Hardware
Certification CE, FCC class A, UL-61010
CPU ARM9™ 32-bit RISC processor
LAN 1 x 10/100 Mbps
Memory 1 x 64 MB SDRAM
OS Support RTOS
Power Consumption 20 W @ 24 VDC
Power Requirement 24 VDC ±10%
Storage 1 x 128M NAND Flash
I/O Interface
Serial Ports 1 x RS-232, 1 x RS-422/485, 1 x RS-485
USB Ports 1 x USB (Host), 1 x USB (Client)
LCD Display
Backlight Life (hrs) 20,000
Display Size 8"
Luminance (cd/m2) 250
Max. Resolution 800 x 600
Mechanical
Dimension (W x H x D) 233 x 176 x 43.3 mm
Enclosure PC + ABS
Mounting Panel
Weight (Net) 1 kg (2.2 lb)
Touchscreen
Touch Type 4-wire resistive

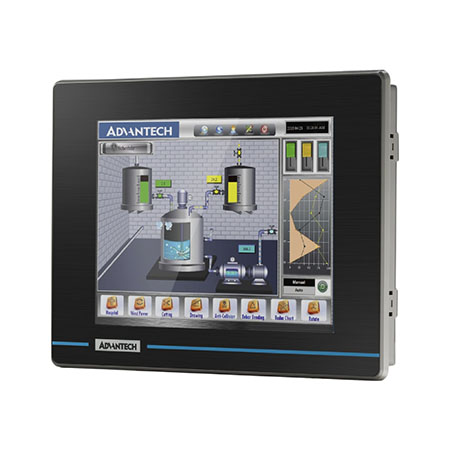

* Product image is an approximate guide only.
