Main Features

• Channel：2 x form A, 2 x form C
• Breakdown voltage： 750VAC (50/60Hz)
• Contact rating： 0.3A@125VAC 1A@30VDC
• Relay Off Time： 4 ms (Max)
• Relay On Time： 4 ms (Max)
• Isolation Voltage： 2500VDC
• Operating Temperature： -40~70°C

Introduction

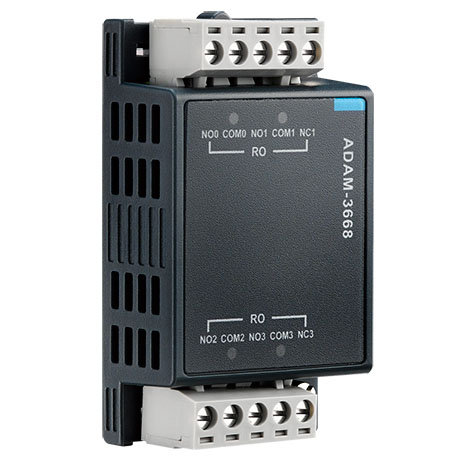

As an ADAM-3600 extension I/O, ADAM-3668 provides 4-ch isolated relay output that you can control from the ADAM-3600 main unit.
