Products > Advantech > Embedded Automation Computers > Advantech iDoor Module

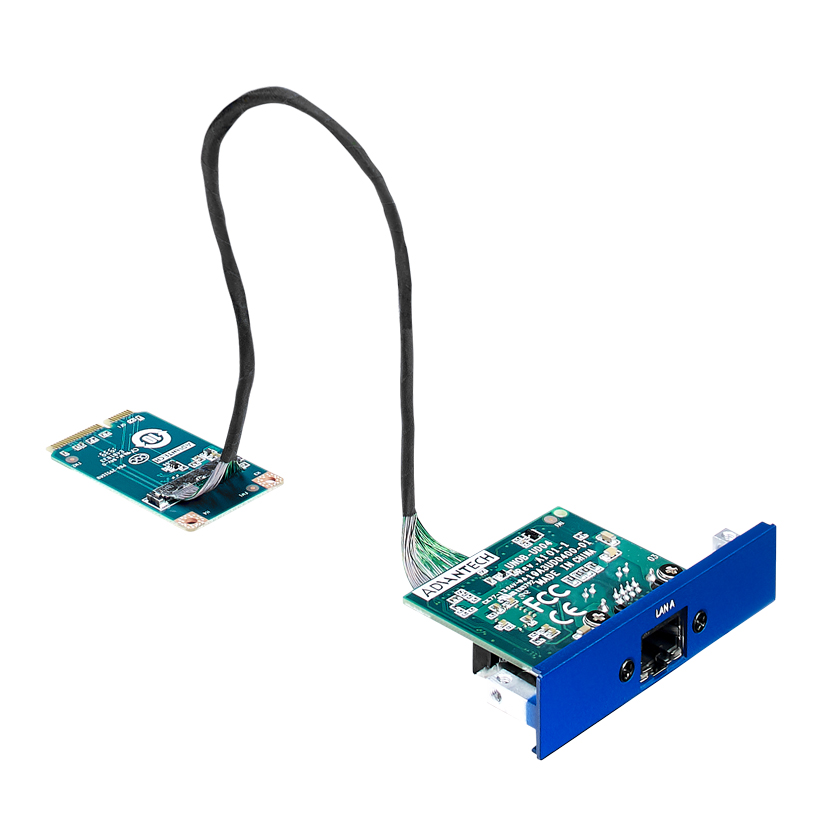

PCM-24R1TP-BE

iDoor Module: Intel I225, 2.5Gb/s, IEEE 1588, TSN, RJ45 x 1

Main Features

- Meets Advantech iDoor technology standard
- Supports Time Sensitive Network (TSN) (IEEE 1588/ 802.AS Rev, 802.1Qav, 802.1Qbv)
- Support PXE
- High speed Ethernet supports 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3
- Achieves time synchronization for device or system
- Real-time Ethernet with hardware based precision time protocol

Introduction

iDoor Module: Intel I225, 2.5Gb/s, IEEE 1588, TSN, RJ45 x 1 PCM-24R1TP-BE supports TSN (Time Sensitive Network) which is an update to the IEEE Ethernet standard intended to address the needs of control systems with standard Ethernet technology.

Specifications
PartNumber	PCM-24R1TP-BE
Environment
Operating Temperature	-20~60 °C (-4~140 °F)
Storage Temperature	-40 ~ 85°C (-40~185°F)
Hardware
Ethernet	Intel® i225-IT
OS Support	MicrosoftR Windows 10, Advantech Linux (Ubuntu 18.04)
