Products > Advantech > Embedded Automation Computers > Industrial IoT Edge Gateway

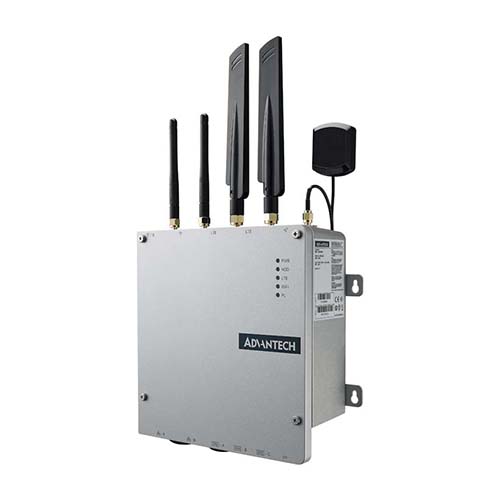

UNO-430

All-Around IP69K/IP68 Waterproof Edge Intelligence Gateway with both M.2 3052/3042 key B, M.2 2230 key E, GPS support, TPM 2.0

Main Features

- Intel® Atom E3950 Quad-core processor with 8G DDR3L memory
- Reserve M.2 3052/3042 key B, M.2 2230 key E for Wi-Fi, LTE & GPS expansion
- 2 x GbE, 2 x RS-422/485 (isolated) ,1 x RS-232 (console) and hardware security TPM2.0
- IP69K and IP68-rated protection from water and dust
- -40~70°C wide operating temp design for harsh environment
- Easy maintenance with front door and cable gland design saves special waterproof cable wiring effort
- Bi-direction wall mount support
- RED Compliance

Introduction

Advantech UNO-430 is a highly ruggedized gateway featured with IP69K/68 Water proof and -40~70°C wide operating temp, which is suitable for general outdoor and indoor application to withstand harsh environment.

Specifications
PartNumber	UNO-430-E1A
Environment
Ingress Protection	All-around IP69K/68
Operating Temperature	-40~70 °C (-40~158 °F)
Relative Humidity	10~95% RH (non-condensing)
Shock Protection	50 G, half sine
Storage Temperature	-40~85 °C (-40~185 °F)
Vibration Protection	2 Grms, random
Hardware
Certification	CB/UL, CE, FCC Class A
CPU	Intel® ATOM E3950 1.6GHz Quad-Core
Graphics Engine	Intel® HD Graphics
Hardware Security	TPM 2.0
Memory	1 x SO-DIMM with 8 GB DDR3L 1600 MHz
OS Support	Microsoft® Windows 10 2019 LTSC, Linux
Power Input	10~36 VDC
Storage	1 x M.2 B key
I/O Interface
Displays	1 x DP
Expansion	1 x M.2 B key, 1 x M.2 E key
LAN Ports	2 x 10/100/1000 Mbps
Power Connector	1 x 3-Pin Terminal Block
Serial Ports	2 x RS-232/422/485, 1 x RS-232 (Console)
USB Ports	2 x Internal USB
Cable Gland	2 x M32 cable gland for Ethernet cable (cable size range OD 5 ~ 6.6 mm/0.19 ~ 0.25 in) 4 x M12 cable gland for serial port and power cable (cable size range OD 4.5 ~ 6.5 mm/0.17 ~ 0.25 in)
Mechanical
Dimension (W x H x D)	200 x 68 x 200 mm
Enclosure	Aluminum housing
Weight (Net)	3 kg
