Products > Advantech > Remote I/O&Wireless Sensing Modules

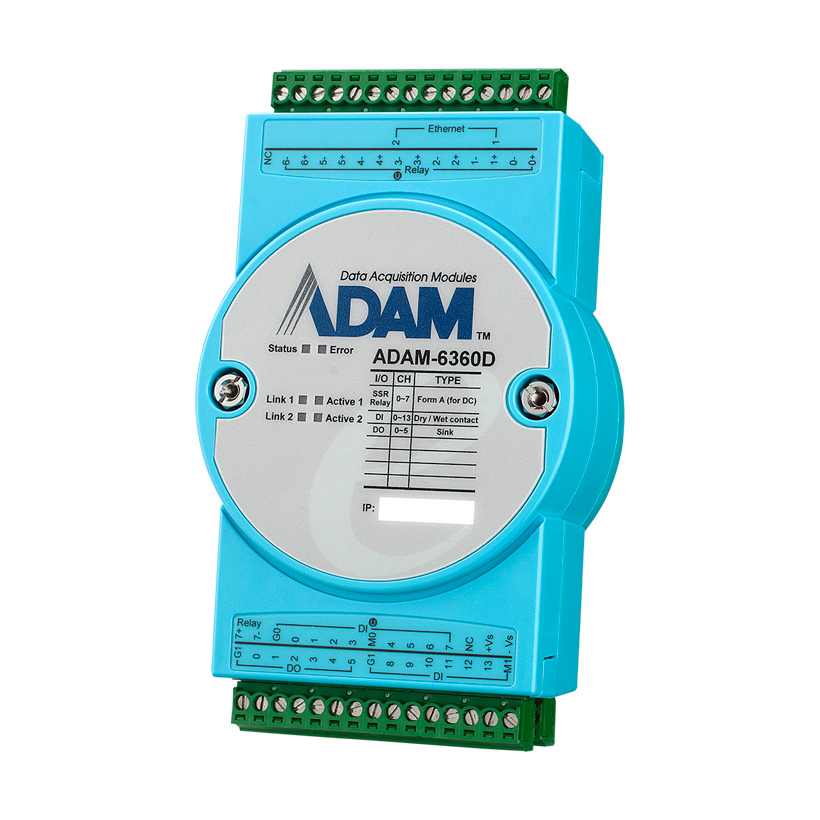

ADAM-6360D
8Relay(SSR)/14DI/6DO IoT Modbus/OPC UA Ethernet Remote I/O


Main Features

- OPC UA empowers Modbus I/O users to access the industrial IoT world
- OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence
- Hardware and software double security levels to prevent being hacked
- Cost-effective: high I/O density and daisy-chaining solution saves cost





Introduction

Advantech ADAM-6300 series is an innovative OPC UA I/O Module with Modbus protocol, which can link with SCADA and the cloud without the need for gateways. Moreover, through the OPC UA and built-in security IC, data is highly secured throughout the OT and IT levels.




Specifications

PartNumber ADAM-6360D-A1
Relay Output
Channels 8 PhotoMOS SPST Form A
Contact Rating (Resistive and Inductive Load) 1 A @ 25 °C @ 30 VDC, 0.7 A @ 70 °C @ 30 VDC
Isolated Digital Input
Channels 14
Input Voltage Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
Isolation Protection 2,500 VDC
Isolated Digital Output
Channels 6
Isolation Protection 2,500 VDC
Output Type Sink
Sink Current 100 mA max./channel





* Product image is an approximate guide only.
