Products > Advantech > Industrial Computer Peripherals > ATX Power Supply

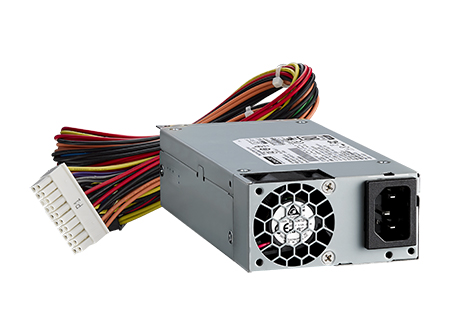

PS8-250FATX-BB

Delta AC to DC 100-240V FLEX ATX 250W 80 Plus Bronze

Main Features

- Full range AC input 100-240V
- Low ripple & noise
- Supports OVP, OTP, SCP and OCP circuit protection
- Common safety for CE, FCC, UL, CB, TUV, CCC, KC, BSMI
- 80 Plus Bronze Available

Specifications
PartNumber	PS8-250FATX-BB
Power Supply
Form Factor	FLEX
Output Power	250W
Input Power	AC to DC
Input Current (maximum)	115V @3.5A
Input Voltage	100 ~ 240V
Input Frequency	47 ~ 63 Hz
Efficiency	82%
Max Temperature	50°C @ 100%
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 70°C
Storage Humidity	95% RH
Output Rating	+3.3V @ 13A;+5V @ 15A;+12V1 @ 17A;+12V2 @ 17A;-12V @ 0.3A;+5Vsb@ 2.5A
MTBF (hours @ 25°C)	100K
Dimensions (D x W x H)	150 x 81.5 x 40.5 mm
Safety	CE / FCC / UL / CB / TUV / CCC / KC / BSMI
Manufacturer	Delta
