Products > Advantech > Industrial Computer Peripherals > ATX Power Supply

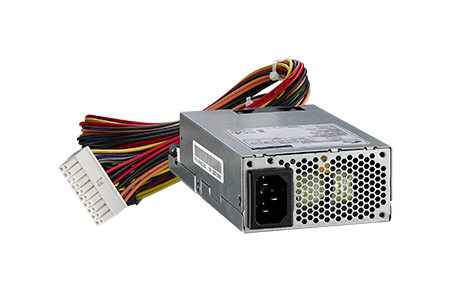

PS8-350FATX-GB

FSP AC to DC 100-240V FLEX ATX 350W 80 Plus Gold

Main Features

- Full range AC input 100-240V
- Low ripple & noise
- Supports OVP, SCP and OPP circuit protection
- Common safety for CE, FCC, UL, CB, TUV, CCC, KC
- 80 Plus Gold Available

Specifications
PartNumber	PS8-350FATX-GB
Power Supply
Form Factor	FLEX
Output Power	350W
Input Power	AC to DC
Input Current (maximum)	115V @6A
Input Voltage	100 ~ 240V
Input Frequency	47 ~ 63 Hz
Efficiency	87%
Max Temperature	50 @ 100%
Operating Temperature	0 ~ 50°C
Storage Temperature	-40 ~ 80°C
Storage Humidity	95% RH
Output Rating	+3.3V @14A; +5V @ 16A; +12V @ 29A; -12V @ 0.3A; +5Vsb @ 3A
MTBF (hours @ 25°C)	100K
Dimensions (D x W x H)	150 x 81.5 x 40.5 mm
Safety	CE / FCC / UL / TUV / CB / CCC / KC
Manufacturer	FSP
