Our Products

Products > Advantech > Industrial Computer Peripherals > ATX Power Supply

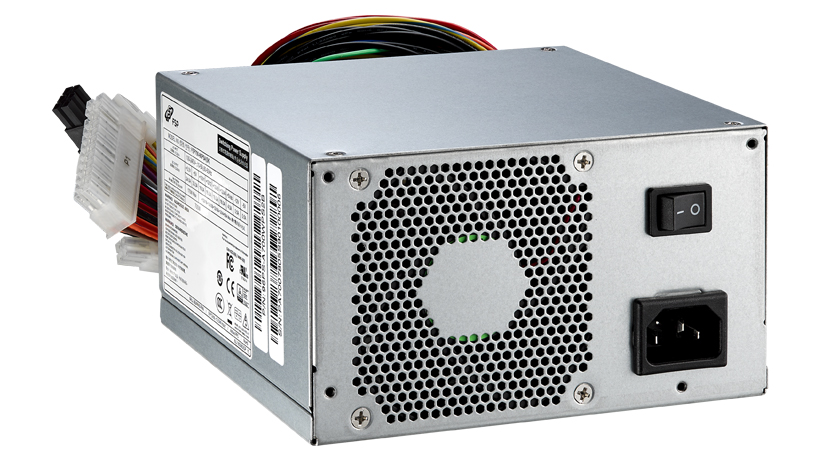

PS8-700ATX-BB

FSP AC to DC 100-240V ATX 700W 80 Plus Bronze

Main Features

- Full range AC input 100-240V
- Low ripple & noise
- Supports OTP, OVP and SCP circuit protection
- Common safety for CE, FCC, UL, CB, TUV, CCC, KC
- 80 Plus Bronze Available

Specifications
PartNumber	PS8-700ATX-BB
Power Supply
Form Factor	PS2
Output Power	700W
Input Power	AC to DC
Input Current (maximum)	115V @10A
Input Voltage	100 ~ 240V
Input Frequency	47 ~ 63 Hz
Efficiency	82%
Max Temperature	50°C @ 100%
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 80°C
Storage Humidity	95% RH
Output Rating	+3.3V @ 24A; +5V @ 30A; +12V1 @ 16A; +12V2 @ 16A; +12V3 @ 16A; +12V4 @ 16A; -12V @ 0.5A; -5V @ 0.5A; +5Vsb @ 4A;
MTBF (hours @ 25°C)	100K
Dimensions (D x W x H)	140 x 150 x 86 mm
Safety	CE / FCC / UL / TUV / CB / CCC / KC
Manufacturer	FSP
