Products > Advantech > Industrial Computer Peripherals > ATX Power Supply

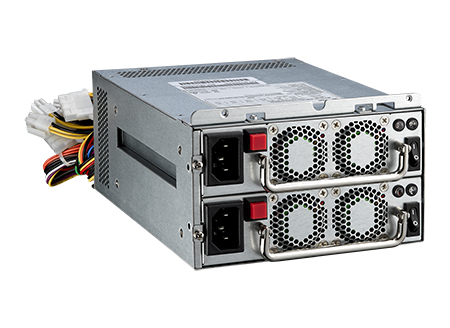

RPS8-500ATX-GB

FSP AC to DC 100-240V 500W 2U (1+1)Redundant 80 Plus Gold

Main Features

- Full range AC input 100-240V
- Supports PMBus v1.2
- Supports OCP, OTP, OVP and SCP circuit protection
- Common safety for CE , FCC, UL, CB, TUV, CCC, KC
- 80 Plus Gold Available

Specifications
PartNumber	RPS8-500ATX-GB
Power Supply
Form Factor	Mini
Output Power	500W
Input Power	AC to DC
Input Current (maximum)	115V @6A
Input Voltage	100 ~ 240V
Input Frequency	47 ~ 63 Hz
Efficiency	84%
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 80°C
Storage Humidity	5 ~ 90% RH
Output Rating	+3.3V @ 20A; +5V @ 20A; +12V @ 40A; -5V @ 0.3A; -12V @ 0.5A; +5Vsb @ 3A
MTBF (hours @ 25°C)	100K
Dimensions (D x W x H)	190 x 150 x 84 mm
Safety	CE / FCC / UL / TUV / CB / CCC / KC
Manufacturer	FSP
