Main Features

• 667MHz dual-core ARM processor
• 2 x EtherCAT ports for 250/200us cycle time
• Up to DI 1024 CH / DO 1024 CH / AI 128 CH / AO 128 CH IO Control
• Diagnostics for fast error handling can trace command and error message

Introduction

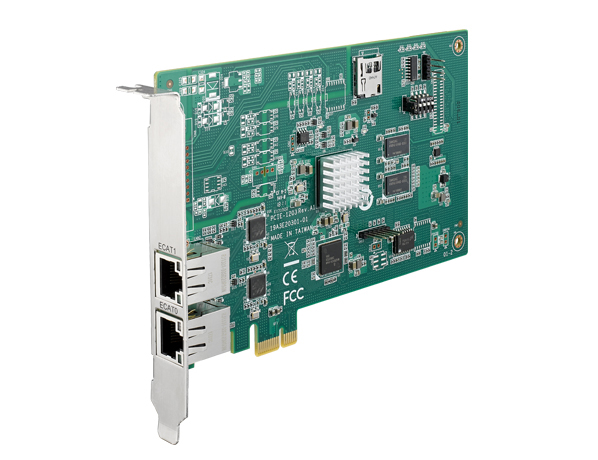

PCIE-1203IO is a 2-port EtherCAT PCI Express Card, and also a ready-to-use EtherCAT development platform for PC-based industrial automation. The protocol stack is executed autonomously on the card, allowing the host to handle up to 2 EtherCAT networks with short cycle time for pure I/O applications.
