Main Features

• Encoder input is 5 MHz for CW/CCW,P/D,AB mode
• Pulse output up to 5 MHz
• Memory buffer (10 K points) for trajectory planning
• Point-to-point, line and E-Gear
• Hardware emergency input

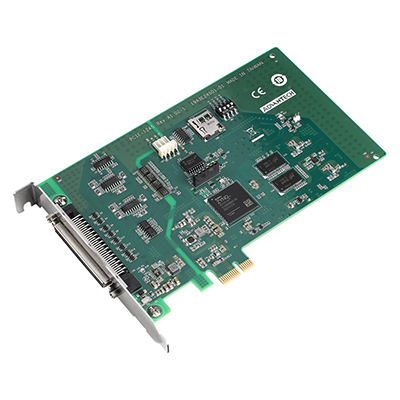

PCIE-1245/1245E series are 4-axis motion control PCI Express cards designed for electrical and traditional machine automation applications. Equipped with SoftMotion algorithm, the board can perform motion trajectory and timing control to meet the synchronization in precise movement.
