Products > Advantech > Data Acquisition (DAQ) > DAQ Cards > Analog Output

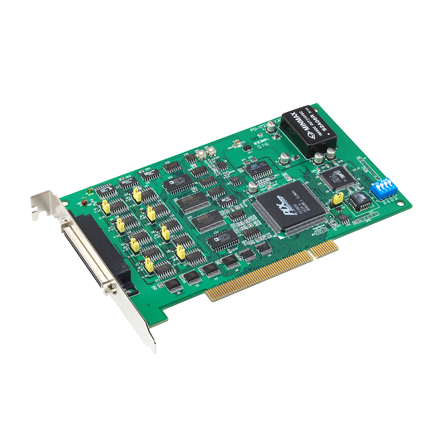

PCI-1723

16-bit, 8-ch Analog Output PCI Card with 16-ch Digital I/O

Main Features

Auto calibration function
A 16-bit DAC is equipped for each analog output channel
Synchronized output function
Output values retained after system hot reset
2-port (16-channel) user-defined digital input/output
BoardID™ switch

Introduction

PCI-1723 is a non-isolated multiple channel analog output card for the PCI bus, and each analog output channel is equipped with a 16-bit, double-buffered DAC. It also features an auto-calibration function and a BoardID. switch. The PCI-1723 is an ideal solution for industrial applications where multiple analog output channels are required.

Specifications
Part Number		PCI-1723-AE
Analog Input	Bipolar Inputs (V)	-
	Channels	-
	Resolution	-
	Sampling Rate	-
	Unipolar Input (v)	-
Analog Output	Channels	8
	Output Ranges (V)	-10 ~ 10, 0 ~ 20 mA, 4 ~ 20 mA
	Resolution	16 bits
	Throughput	Static update
General	Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
