Products > PATLITE > LED Lighting

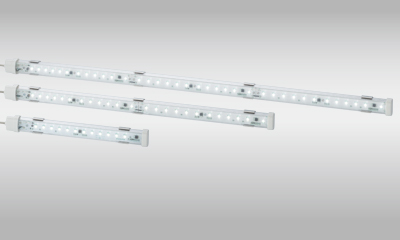

CWA
An affordable replacement, the slim LED light bar can outperform a conventional fluorescent lamp. The protection rating of IP65 is a standard which allows installation in most common environments








คุณลักษณะของผลิตภัณฑ์

- Available for DC 24V applications
- Long-lasting LED’s greatly reduce maintenance costs
- Total luminous flux of 350lm, 100lx luminance at 1m (Voltage:DC24V)
- A set of two stainless-steel mounting brackets is a standard accessory
- Operating temperature range from -30 to +60 degrees C.
- LED color temperature is Daylight (6500K)





คุณลักษณะของรุ่น

DIMENSIONS Lengths:
- 300mm
- 600mm
- 900mm
OPERATING VOLTAGES - 300mm Length: DC24V, 175mA,
- 600mm Length: DC24V, 365mA
- 900mm Length: DC24V, 550mA
FUNCTIONS - 300mm Length: 100 lux, 350 lum
- 600mm Length: 200 lux, 700 lum
- 900mm Length: 300 lux, 1050 lum
MOUNTING - Mount in any direction with the brackets included
LIGHT SOURCE - High power LED Array
LENS MATERIAL - Polycarbonate Resin
CONFORMITY STANDARDS - RoHS
- CE
PROTECTION RATINGS - IP65(IEC 60529)









* Product image is an approximate guide only.
