HSST-3M2
Manual Control Signal Tower(LR5)






The HSST kit is a low cost complete turn-key solution for manually controlling a pre-assembled, pre-wired 3 stack light tower. The kit includes a 3-stack LED tower, selection for two pole lengths (long or short), control box, brackets and AC adaptor. An ideal use for manual assembly operations where lean manufacturing practices are critical to the overall efficiency of the operation.




คุณลักษณะของผลิตภัณฑ์

· HSST standard colors: red, yellow, green.
· The LED illuminating lights offers maintenance-free operation.
· The “Free Range” AC power adaptor (100-240VAC) with about a 5ft. cable makes set-up easy in any location (UL Listed)

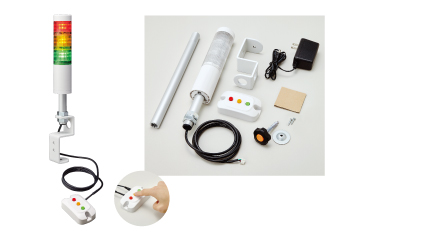

· The complete kit includes a 3-tiered 50mm diameter LED signal tower in a three-colored LED module combination with about a 4ft. cable, mounting brackets that fit standard cubicle partitions, and AC power adaptor.
· Control box wire connection includes easy-plug connectors.
· 3-button switch box with mounting screws.








คุณลักษณะของรุ่น

DIMENSIONS - Φ50 x 307 (short pole)
- Φ50 x 507 (long pole)
OPERATING VOLTAGES - 100-240VAC
FUNCTIONS - Continuous Lighting
- Manual Control
MOUNTING - Bracket-clamp Mount
- Wall Mount
- Cubicle-edge Mount
BODY COLOR - Body: Off-white
STACKABLE TIERS - Available only as a three-tier tower
MODULE COLORS - LED Color: Red/Amber/Green
- Lens Color: Clear (Shows color when activated)
CONFORMITY STANDARDS - RoHS
- FCC
- UL48
- UL Listed









* Product image is an approximate guide only.
* รูปสินค้าเป็นเพียงภาพตัวอย่าง ซึ่งอาจมีรายละเอียดแตกต่างจากสินค้าจริงที่จำหน่าย
