Products > Advantech > Human Machine Interface > Configurable System

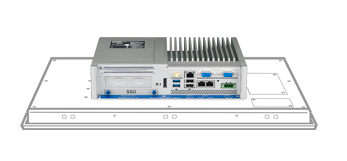

TPC-B500

Computing Box Module with 6th Gen. Intel® Core™ /Celeron® Processor

Main Features

Intel® Celeron® /J34553955U and Core™ i3-6100U/ i5-6300U/ i7-6600U processor with 4/8 GB SODIMM
Supports two independent video interfaces with picture-in-picture function and up to 100m long signal transmission distance (iLINK technology)(iLINK technology)
Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" w/ robust 5-wire resistive touch)
PCIe, mini PCIe, M.2 and SSD expansion

Introduction

TPC computing box modules are powered by 6th Gen Intel® Core™/Celeron® processors combined with an industrial-grade LED LCD module, providing compact and fanless control panel solutions that support high-performance computing. With a flexible modular design, they allow users to interchange video interfaces such as industrial monitors which can be used as an interface of two controllers simultaneously via the PiP (Picture-in-Picture) feature, or expand the signal transmission distance to 100m via iLINK technology.

Specifications
PartNumber	TPC-B500-633AE	TPC-B500-673AE	TPC-B500-6C2AE
System Hardware
CPU	6th Gen Intel® Core™ i3-6100U 2.30 GHz	6th Gen Intel® Core™ i7- 6600U 2.60 GHz	6th Gen Intel® Celeron® 3955U 2.00 GHz
Memory	8 GB DDR4 2133 MHz SODIMM SDRAM (up to 16 GB)	8 GB DDR4 2133 MHz SODIMM SDRAM (up to 16 GB)	4 GB DDR4 2133 MHz SODIMM SDRAM (up to 16 GB)
Storage	1 x M.2 (2280) SATA slot;1 x 2.5" SATA SSD slot;1 x CFast (optional via iDoor)	1 x M.2 (2280) SATA slot;1 x 2.5" SATA SSD slot;1 x CFast (optional via iDoor)	1 x M.2 (2280) SATA slot;1 x 2.5" SATA SSD slot;1 x CFast (optional via iDoor)
LAN	3 x 10/100/1000 Base-T (2 x Intel® I210, 1 x Intel® I219)	3 x 10/100/1000 Base-T (2 x Intel® I210, 1 x Intel® I219)	3 x 10/100/1000 Base-T (2 x Intel® I210, 1 x Intel® I219)
Expansion Slots	Half-size PCIe x 1;Full-size mini PCIe x 2	Half-size PCIe x 1;Full-size mini PCIe x 2	Half-size PCIe x 1;Full-size mini PCIe x 2
I/O	1 x RS-232, 1 x RS-232/422/485;2 x USB 3.0, 2 x USB 2.0;1 x Audio Line-Out;1 x DisplayPort 1.4 Out	1 x RS-232, 1 x RS-232/422/485;2 x USB 3.0, 2 x USB 2.0;1 x Audio Line-Out;1 x DisplayPort 1.4 Out	1 x RS-232, 1 x RS-232/422/485;2 x USB 3.0, 2 x USB 2.0;1 x Audio Line-Out;1 x DisplayPort 1.4 Out
General
Power Input	24VDC +/- 20%	24 VDC ± 20%	24VDC +/- 20%
OS Support	Microsoft® WES7 32bit/64bit / WE8S 64bit / Windows 7/ 8.1 32bit/64bit / Windows 10 Enterprise LTSB	Microsoft® WES7 32bit/64bit / WE8S 64bit / Windows 7/ 8.1 32bit/64bit / Windows 10 Enterprise LTSB	Microsoft® WES7 32bit/64bit / WE8S 64bit / Windows 7/ 8.1 32bit/64bit / Windows 10 Enterprise LTSB
