Main Features

• Modular front display design in three application-based module categories, enabling flexible configurations
• Front panel module with P-CAP multi-touch sensor available in various sizes (12.1" module is equipped with 5-wire resistive touch control)
• Industrial-grade LED LCD with 50,000 hours (18.5" 30,000 hours) lifetime
• Built-in intelligent home key and i-Key (only models with P-CAP touch)
• System status LED indicators in front panel
• IP66-rated front panel and panel mount
• Built-in Wi-Fi antenna and NFC reader on front panel (with optional Wi-Fi/ NFC module)resistive touch control)
• Rear mounted computing box module is necessary to activate display module

Introduction

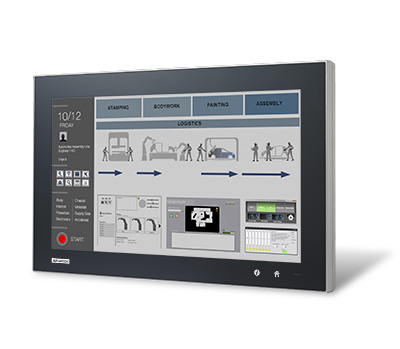

Advantech’s modular display series offers five display modules ranging between 12.1" and 21.5" inches in size to go with three computing boxes (TPC-B200/TPC-B500/ FPM-B700) for a total of 25 potential configurations that can be flexibly adapted to various scenarios. Modular display series are equipped with industrial grade LCD and Projected Capacitive touch (12" Resistive touch) screens, providing the best user experience and reliable operation. The modular design ensures flexible configuration and easy maintenance/upgrades. Its robust enclosure is equipped with a die-cast aluminum alloy front bezel and IP66 rating for protection from dust and water ingress. Moreover, optional Wi-Fi/NFC antennas can be built into the front panel for enhanced connectivity and signal reception.

Specifications
