Main Features

• UL listed for Hazardous Locations: Class I, Division 2
• Intel® Atom E3845 1.91GHz processor with 4GB DDR3L Memory
• 3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor, mSATA, 2 x mPCIe, 1 x SATA, 4 x DI, 4 x DO, 1 x Power Terminal
• Spark-free design with lockable I/O kit
• Dual Power Input for Avoiding Power Down Time
• Exchangeable RTC Battery with easy Access on the Top
• Digital I/O with Isolation Protection for Sensing and controlling
• Diverse system IO and Supports Fieldbus Protocol by iDoor Technology as a Protocol Gateway
• 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology as a Communication Gateway
• Supports MRAM by iDoor Technology
• LAN Redundancy (Teaming)

Introduction

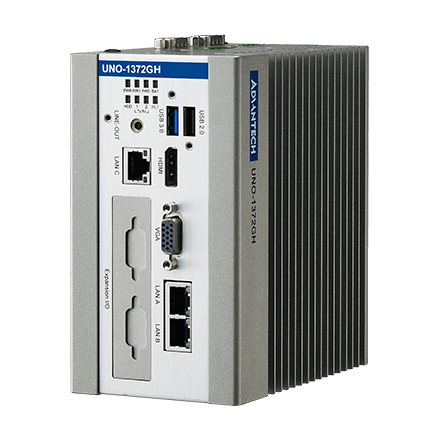

In hazardous locations, devices are under potential danger from flammable gases, combustible dust, or ignitable fibers, creating the potential for fire and explosions. The UNO-1372GH is designed to be safely operated in these locations and are UL listed for Hazardous Locations with Class I, Division 2, groups A, B, C, D T4A certification. The UNO-1372GH is an Intel Atom DIN-rail PC which features an innovative iDOOR Technology for automation applications. It provides rich I/O include 3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor,8 x DIO, all of them can be locked with system by lockable kit to make sure spark-free in harsh environment.

Specifications
