Main Features

• Intel® Celeron® J1900 2.0GHz processor with 4GB DDR3L Memory
• Robust design for industrial control and harsh environment
• Isolated protection of COM and digital Input/output
• Compact fanless design
• Wide power input range and operating temperature
• Chassis grounding protection
• Flexibility of expanding functionality for various application
• Support diverse industrial fieldbus, IO & peripheral and wireless communication iDoor modules
• Dedicated TPM2.0 microcontroller designed for hardware security

Introduction

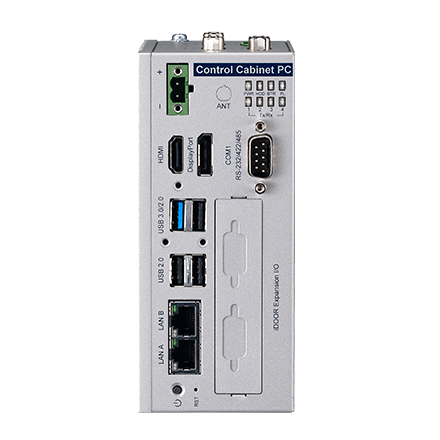

The UNO-1372G series is a ruggedized fanless automation PC. The DIN-rail mounting form factor is suitable to be used in control cabinet for industrial automation application. The well-designed heat dispassion mechanism enables the UNO-1372G operating in wide temperatures (from -20 to 60°C). The latest UNO-1372G-J includes Intel Celeron J1900 platform and builds in 4G DDR3L RAM. It provides rich interfaces including 2 x GbE LAN, 1 x USB3.0, 3 x USB2.0 ports, 4 COM ports and 4DI/4DI. It also equips with one DP and one HDMI for display. UNO-1372G-J provides great expansion including 2 x Mini-PCIe (one supports mSATA option) and supporting Advantech’s latest iDoor technology. It has great expandability for wireless communication, I/O expansion and industrial protocols via iDoor technology. With multiple OS and driver support, such as Windows 7, Windows 10 and embedded Linux, users can integrate applications easily in an application ready platform that can provide versatile functions to fulfill diverse requirements.

Specifications
