Main Features

• Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
• Pulse output up to 5 Mpps
• Supports linear and circular interpolation
• Hardware emergency input
• Supports E-Gear
• Supports programmable acceleration/deceleration rate
• Memory buffer (10K points) for trajectory planning which is designed in DSP(Auto-blending is not supported)
• Position compares triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP
• Position latch
• Programmable interrupt and watchdog timer
• RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes

Introduction

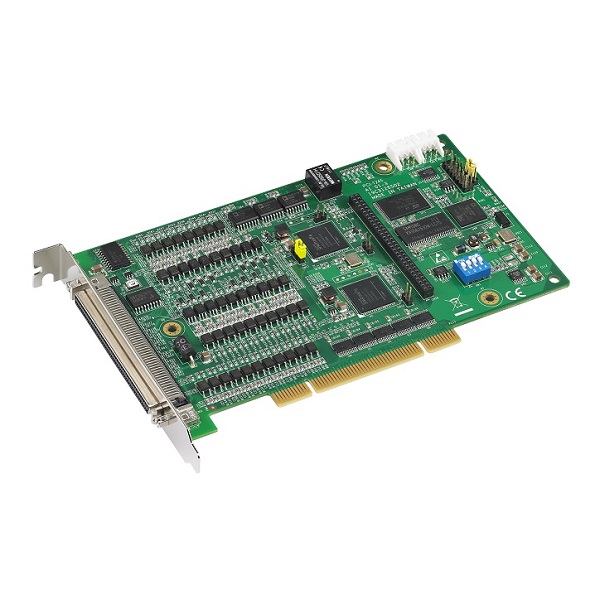

The PCI-1245V is a 4-axis universal PCI (supporting both 3.3 V and 5 V signal slot) stepping/pulse-type servo motor control card designed for applications which need to control interpolation, synchronization among multiple axes and continuous contouring. The PCI-1245V utilizes the high-performance DSP and FPGA to calculate the motion trajectories, synchronization timing control for multiple axes and input/output handling to offer functionality, such as linear interpolation, 2/3- axis circular interpolation, Compare trigger,
T/S-curve acceleration/deceleration rate and so on. In addition, Advantech supplies a Common Motion API library, graphical utility and user-friendly examples to decrease programming load, helping users complete configuration and diagnosis easily.
