Products > Advantech > Panel PC

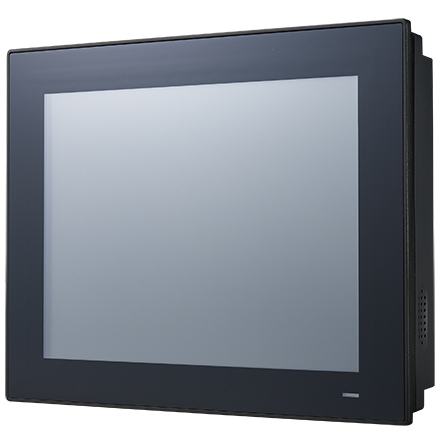

PPC-3100-RE9A

10.4" Fanless Panel PC with Intel® Atom™ E3940 Processor

Main Features

10.4" SVGA TFT LCD with resistive touchscreen
Intel® Atom™ E3940, 1.6 GHz, processor
Up to 8 GB DDR3L 1866 SDRAM
Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
Fanless design with low power consumption
Wide range DC support (9 ~ 32 VDC)
1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
Optional GPIO (8 channels, TTL level)
No RED Certification

Introduction

The PPC-3100 is a 10.4" fanless panel PC equipped with a high-performance Intel® Atom™ E3940 quad-core processor that supports wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 4 x USB 3.0, 1 x isolated RS-422/485, and dual Intel® Gigabit Ethernet, ensures easy integration and connectivity.

Specifications
PartNumber	PPC-3100-RE9A
Processor System
CPU	Intel® Atom™ E3940 quad core
Frequency	1.6 GHz
L3 Cache	2M
Memory	1 x SODIMM DDR3L 1866 MHz (max. 8 GB)
Storage	1 x 2.5" SATA bay
Network (LAN)	2 x 10/100/1000 Mbps Ethernet (Intel I210)
I/O Ports	5 x Serial ports: 4 x RS-232, 1 x isolated RS-422/485 (Adjustable through BIOS) ;4 x USB 3.0; 1 x Line-out, 1 x Mic-in;1 x VGA;1 x HDMI;1 x GPIO (8 channels, TTL level, internal)
Expansion Slots	1 x Mini PCIe
Watchdog Timer	255 timer levels; setup by software
Speaker	2 x 1W
Physical Characteristics
Dimensions	271.8 x 216.8 x 57.5 mm (10.7 x 8.53 x 2.26 in)
Weight	2.8 kg (6.17 lb)
OS Support
OS Support	Microsoft® Windows 10 IoT Enterprise, Linux, Android 6.0 Marshmallow
Power Supply
Input Voltage	9-32 VDC
Power Consumption	30W (Burn-in test 7.0 in Windows 7 32 bit)
Display
Display Type	10.4" TFT LCD (LED Backlight)
Max. Resolution	800 x 600
Viewing Angle	80 (left), 80 (right), 70 (up), 70 (down)
Luminance (cd/m2)	400
Backlight Life (hrs)	30, 000 hrs (typical)
Touchscreen
Touch Type	Analog resistive (5-wire)
Light Transmission	80% ±5
Controller	USB interface
Durability (Touches)	Greater than 35 million touches in one location without failure
Environment
Operating Temperature	0 ~ 50° C (32 ~ 122° F)
Storage Temperature	-30 ~ 60°C (-22 ~ 140°F)
Safety	CB, CCC, BSMI, UL
Relative Humidity	10 ~ 95% @ 40° C (non-condensing)
Shock Protection	Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
Vibration Protection	Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64
EMC	CE, FCC Class B, BSMI
Front Panel Protection	IP65 Compliant
