Products > Advantech > Panel PC

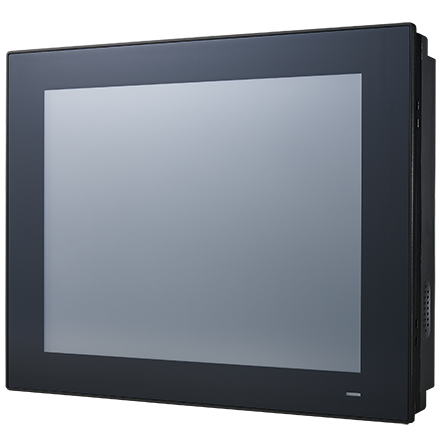

PPC-3120-RE9A

12.1" Fanless Panel PC with Intel® Atom™ E3940 Processor

Main Features

12.1" XGA TFT LCD with resistive touchscreen
Intel® Atom™ E3940, 1.6 GHz, processor
Up to 8 GB DDR3L 1866 SDRAM
Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
Fanless design with low power consumption
Wide range DC support (9 ~ 32 VDC)
1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
Optional GPIO (8 channels, TTL level) & PCI/PCIe x1 expansion kit
No RED Certification

Introduction

The PPC-3120 is a 12.1” fanless panel PC equipped with a high-performance Intel® Atom™ E3940 quad-core processor that supports wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 4 x USB 3.0, 1 x isolated RS-422/485, and dual Intel® Gigabit Ethernet, ensures easy integration and connectivity.

Specifications
PartNumber	PPC-3120-RE9A
Processor System
CPU	Intel® Atom™ E3940 quad core
2nd Cache Memory	2MB
Frequency	1.6 GHz
Memory	1 x SODIMM DDR3L 1866 MHz (max. 8 GB)
Storage	1 x 2.5" SATA Bay, 1 x mSATA Bay
Network (LAN)	2 x 10/100/1000 Mbps Ethernet (Intel I210)
I/O Ports	5 x Serial ports: 4 x RS-232, 1 x isolated RS-422/485 (Adjustable through BIOS) ;4 x USB 3.0; 1 x Line-out, 1 x Mic-in;1 x VGA;1 x HDMI;1 x GPIO (8 channels, TTL level, internal)
Expansion Slots	1 x Mini PCIe;Optional: 1 x PCIe x1 or 1 x PCI
Speaker	2 x 1W
Watchdog Timer
Watchdog Timer	255 timer levels, set up by software
Physical Characteristics
Dimensions	317 x 246 x 60.5 mm (12.4 x 9.7 x 2.4 in)
Weight	3.4KG
Power Supply
Input Voltage	9 - 32 Vdc
Power Consumption	32W
OS Support
OS Support	Microsoft® Windows 10 IoT Enterprise, Linux, Android 6.0 Marshmallow
Display
Display Type	12.1" TFT LCD (LED Backlight)
Max. Resolution	1024 x 768
Viewing Angle	80 (left), 80 (right), 70 (up), 70 (down)
Luminance (cd/m2)	600
Contrast Ratio	700 : 1
Backlight Life (hrs)	50,000 hrs (typical)
Touchscreen
Touch Type	Analog Resistive 5-wire
Light Transmission	80±5% at 550 nm wavelength
Controller	USB interface
Durability (Touches)	Greater than 35 million touches in one location without failure
Environment
Operating Temperature	0 ~ 50° C (32 ~ 122° F)
Storage Temperature	-40 ~ 60°C (-40~140°F)
Relative Humidity	10 ~ 95% @ 40° C (non-condensing)
Shock Protection	Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Protection	Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64
EMC	CE, FCC Class B, BSMI
Safety	CB, CCC, BSMI, UL
Front Panel Protection	IP65 Compliant
