Products > PATLITE > Signal Beacon


NE-A

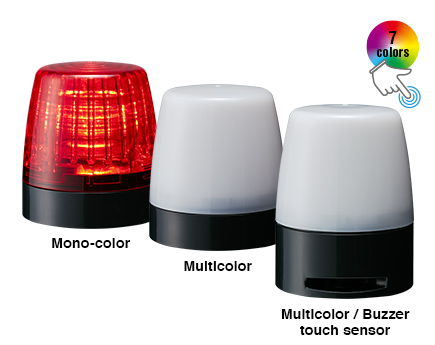

Signal Beacon From touch sensor-equipped models to simple models, Full lineup of 56 mm direct mounted indicator lights










คุณลักษณะของผลิตภัณฑ์



【Multi-color model】

  • Touch Sensor Type can be selected. Capacitive touch sensors are built into the top of the indicator lights. Touch the illuminated indicator light instead of the switch to send a signal to the host. It can be used by intuitive operations such as inputting the completion of work and calling the manager.

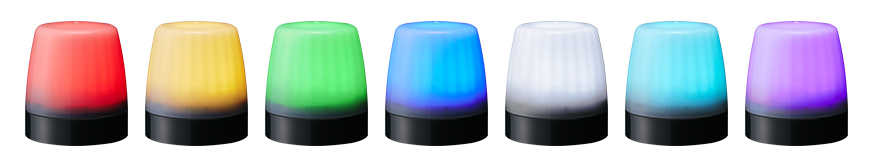

  • The display color can be selected from seven colors depending on the application. The use of easy-to-image colors such as "abnormal" and "working" makes it possible to determine and respond to situations more intuitively.
  • Use a milky lens globe that is easy to distinguish between on and off. The alarm is given by a gentle light that is uniformly illuminated.

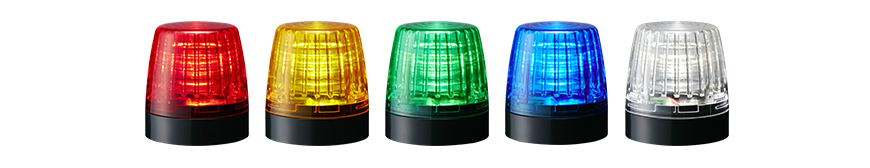

【Single color Model】

  • Employs a newly developed reflector that achieves a distinctive way of lighting. Brighter, and informed in a clear light.
  • A screw-less terminal block that can be wired reliably and easily without tightening screws is adopted. Reduces wiring man-hours and errors.



คุณลักษณะของรุ่น

Rated voltage 【Multi-color mode】12V~24V DC
【Single color Models】24V DC
Sizing ⌀56
Compliance Standards EMC Directive (EN 61000-6-4,EN 61000-6-2)
RoHS Directive (EN 50581)
UL 508, CSA-C22.2 No. 14
FCC Part 15 SubpartB Class A
KC (KN 61000-6-4, KN 61000-6-2)[Multi-color model]
Protection class 【Single color Models】
・IP65 / NEMA TYPE 4X, 13
【Multi-color model】
・No buzzer... IP67 / NEMA TYPE 4X, 13
・Buzzer present... IP65 / NEMA TYPE 4X, 13 (with forward mounting)









* Product image is an approximate guide only.
* รูปสินค้าเป็นเพียงภาพตัวอย่าง ซึ่งอาจมีรายละเอียดแตกต่างจากสินค้าจริงที่จำหน่าย
