Products > PATLITE > Network

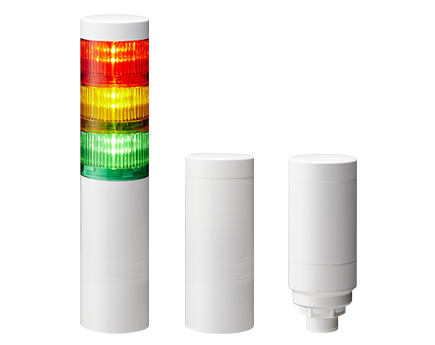

LR6-IL

IO-Link Signal Tower

Standardize your signaling interface. The PATLITE IO-Link Signal Tower installs and configures seamlessly through your IO-Link interface. IO-Link is a standardized IO technology (IEC 61131-9); fieldbus-neutral, point-to-point communication, universal interface.

คุณลักษณะของผลิตภัณฑ์

Seamlessly integrates with IO-Link masters. Learn more about IO-Link at io-link.com.
Built-in 5-pin M12 connector for quick and easy installations.
Select any combination of solid colors, multi-color, and clear globe LED units.
Audible alarm and Wireless Data Acquisition System are available as options.
A modular body construction makes configuring LED units and optional parts easy.

Specifications
Model Code	Pre-assembled Model (Direct mount) LR6-3ILWMNW-RYG	Body Unit (Direct mount) LR6-ILWMNW	Body Unit (1/2” NPT pipe or direct mount) LR6-ILWCNW
Size	60mm
Tier	LED Unit: Max. 5 tiers and one buzzer Unit
LED Units	Red / Amber / Green (Adding or changing LED units is possible)	Sold Separately	Sold Separately
Light control	Continuous / Flashing
Alarm Sound Pressure	Typ. 84dB (Use LR6-BW)
Alarm Sound Selection	4 types (Selectable) (Use LR6-BW)
Protection Rating	IP65 (NEMA typ. 4x, 13)
Wiring	M12 Connector 5 pins
