Products > Advantech > Human Machine Interface

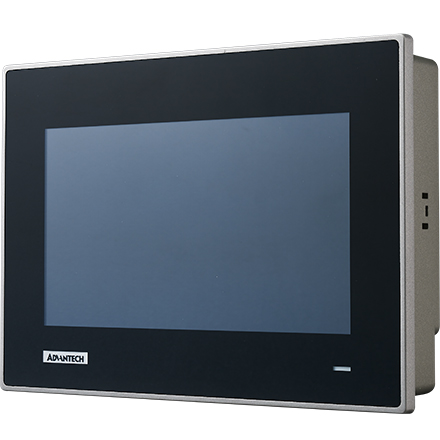

TPC-71W

7" Touch Panel Computer with ARM Cortex™-A9 Processor

Main Features

NXP® ARM® Cortex™-A9 i.MX6 dual/quad-core processor
7" 16:9 WSVGA LCD with multi-touch P-CAP control and true-flat IP66-rated front panel
Up to 2 GB DDR3L RAM and 8 GB eMMC storage onboard
10/100/1000 Mbps LAN with IEEE 802.3at PoE-PD support
1 MB FRAM backup memory for unexpected power interruptions
Serial port with 120Ω termination resistor that supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
Embedded browser and VNC tool for rapid Web App development
Supports Linux Yocto, Linux Ubuntu and Android
Optional NFC and mPCIe expansion modules
Compatible with VESA and panel mounting
Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)

Introduction

TPC-71W is a compact touch panel computer equipped with an NXP® i.MX 6 Cortex™-A9 dual/quad-core processor, 7" TFT LCD display, multi-touch glass sensor, 2 GB of DDR3L RAM, and 8 GB of eMMC storage. To ensure stable operation in harsh industrial environments, TPC-71W supports a wide operating temperature range (-20 ~ 60 °C /-4 ~ 140 °F) and VESA mounting and features an IP66-rated front panel that protects against water and dust ingress. For web-based operations, TPC-71W offers 10/100/1000 Mbps LAN that supports the IEEE 802.3 PoE-PD standard. The inclusion of VNC Tools and browsers enable rapid Web application development and easy configuration. Finally, TPC-71W supports various OS including Linux Yocto, Linux Ubuntu with full QT graphics, and Android to ensure easy deployment for diverse applications.
