Products > Advantech > Intelligent Connectivity > Unmanaged Ethernet Switches

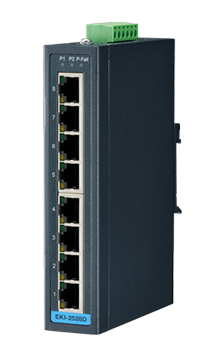

EKI-2528DI

8FE DNV Unmanaged Ethernet Switch, -40~75℃

Main Features

Provides 8-port Fast Ethernet ports with Auto MDI/MDI-X
Supports 10/100 Mbps Auto-Negotiation
Provides broadcast storm protection
Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
Supports redundant 12 ~ 48 VDC power input and P-Fail relay
EKI-2528DI supports wide operating temperatures from -40 to 75°C
DNV certificate

Introduction

The EKI-2528D/DI is DNV certificate product supports 8-port Fast Ethernet solution. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2528D/DI has 2 LED’s to show the link status transmission speed. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2528D/DI comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Specifications
Part Number		EKI-2528DI-AE
General	Ethernet Port Count	8
	Mounting	DIN, Panel
	Power	12-48VDC
	Technology	Ethernet
	Temperature	-40 to 75C
	Unmanaged	Yes
Product Category	Unmanaged	Yes
Environment	Operating Temperature (X)	-40 ~ 75°C (-40 ~ 167°F)
I/O (X)	Transmission Distance	Ethernet: up to 100 m
I/O (X)	Transmission Speed	10/100Mbps
Power Supply (X)	Power Input	2 x Unregulated 48 VDC
Power Supply (X)	Power Connector	6-pin removable screw terminal
General (X)	Ethernet Connectors	8 x RJ-45
	Mounting	DIN-rail, Wall
	Certifications	DNV, CE, FCC, UL 60950
Interface (...)	Ports Number	8
