Products > Advantech > WebAccess Software & Edge SRP > Edge Controller

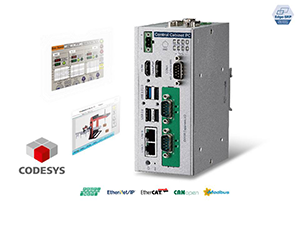

ESRP-SCS-UNO1372

Real-time SoftPLC & SoftMotion Cabinet Controller

Main Features

Open controller with real-time fieldbus control
Reduces downtime with powerful visualization management
Flexible integration with diverse database connectivity options

Introduction

The provision of IEC-61131-3 languages for cross-platform PLC programming minimizes development time and costs and enables motion control with dual fieldbus EtherCAT and CANOpen for servo drives, servo motors, inverters, and induction motors in various applications.On-site machine operation and systems monitoring with flexible target visualization boosts productivity and overall efficiency, while web-based visualization enables remote operation and diagnostics. Supporting ODBC functionality, the Edge SRP could simplify database connection. Plus, Machines can be directlyconnected to the WISE-PaaS cloud, utilizing dashboard function that provides efficiency equipment management, increasing productivity.

Specifications
Part Number		ESRP-SCS-UNO1372
Control System	Control Software	CODESYS V3.5 SP10 Control RTE with Softmotion + Visualization (Target and Web)
General	CPU	Intel® Celeron® J1900 (2 GHz)
	Memory	4 GB DDR3L
	Mounting	DIN-rail, Wall mount
	Power Input	10 ~ 36 VDC
	Dimension(W x D x H)	65 x 105 x 150 mm (2.55 x 4.13 x 5.90 in)
	Certification	CE, FCC Class A, UL, CCC, BSMI
I/O Interface	Displays	HDMI: 1920x1080 @ 60HZ, 1xDP, supports 2560x1440 @60Hz
	LAN	2 x 10/100/1000 Mbps BASE-T (LAN A/B: Intel® i210)
	Serial Ports	4 x RS-232/422/485, 1 x DB9, 3 x USB 2.0, 1 x USB 3.0, 4 x DI/O
OS Support	OS Support	Microsoft Windows Embeddd 7 Pro (32 bit)
Storage	SSD	128 GB SSD
System Hardware	Battery Backup Memory	2 MB
	Expansion Slots	2 x Full-size mPCIe
	Expansion	1 x CANopen (iDOOR)
Environmental	Operating Temp.	-20 ~ 60 °C (-4 ~ 140 °F)
Environmental	Storage Temperature	40 ~ 85 °C (-40 ~ 185 °F)
