Products > Advantech > WebAccess Software & Edge SRP > Edge Controller

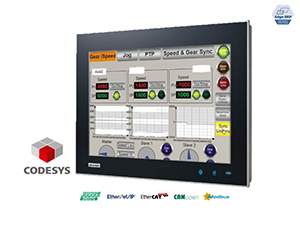

ESRP-SCS-TPC5152

Visualized Real-time SoftLogic Panel Controller

Main Features

Open controller with real-time fieldbus control
Reduces downtime with powerful visualization management
Flexible integration with diverse database connectivity options

Introduction

The provision of IEC-61131-3 languages for cross-platform PLC programming minimizes development time and costs and enables motion control with dual fieldbus EtherCAT and CANOpen for servo drives, servo motors, inverters, and induction motors in various applications.On-site machine operation and systems monitoring with flexible target visualization boosts productivity and overall efficiency, while web-based visualization enables remote operation and diagnostics. Supporting ODBC functionality, the Edge SRP could simplify database connection. Plus, Machines can be directlyconnected to the WISE-PaaS cloud, utilizing dashboard function that provides efficiency equipment management, increasing productivity.

Specifications
Part Number		ESRP-SCS-TPC5152
Display	Size	15" XGA TFT LED LCD with 1024x768 resolution and projected capacitive touchscreen
General	CPU	6th Gen Intel® Core™ i3-6100U (2.30 GHz)
	Memory	8 GB DDR4
	Mounting	Panel Mount, optional stand mount kit and optional VESA mount kit
	Power Input	24 VDC ± 20%
	Dimension(W x D x H)	Panel: 383.2 x 307.3 x 85.9 mm (15.08 x 12.09 x 3.38 in) Cutout: 374.5 x 298.5 mm (14.74 x 11.75 in)
	Certification	CE, FCC Class A, UL, CCC, BSMI, EAC, 61010
Control System	Control Software	CODESYS V3.5 SP10 Control RTE with Softmotion + Visualization (Target and Web)
I/O Interface	LAN	3 x 10/100/1000 Mbps BASE-T (2 x Intel® i210, 1 x Intel® i219)
I/O Interface	Serial Ports	1 x RS-232, 1 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x audio line out, 1 x DisplayPort 1.4 out
OS Support	OS Support	Microsoft Windows Embeddd 7 Pro (32 bit)
Storage	SSD	128 GB SSD
System Hardware	Battery Backup Memory	2 MB
	Expansion Slots	1 x Half-size PCIe;2 x Full-size mini PCIe
	Expansion	1 x CANopen (iDOOR)
Environmental	Operating Temp.	0 ~ 55 °C (32 ~ 131 °F)
Environmental	Storage Temperature	20 ~ 60 °C (-4 ~ 140 °F)
