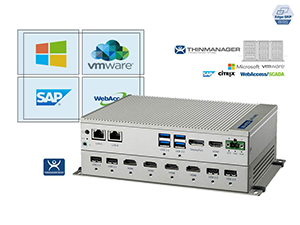

ESRP-CMS-UNO2484
Centralize Visualization for Control Room Multiple display


Main Features

  • Minimize downtime cost with diskless platform
  • Control multi-tasking visualization remotely
  • Maintain numerous PCs with centralized management





Introduction
Edge visualizer serves as a diskless workstation, storing data on the server for significantly reduced costs.Edge visualizer supports split screen (up to 16 sections) and scaling functionality with a virtual keyboard and high-resolution (3840 x 2160) displays that enable users to monitor every aspect of production.Edge visualizer with ACP ThinManager uses network booting for visualizing production processes from the server to each edge client simultaneously, streamlining installation and maintenance.





Specifications
Part Number ESRP-CMS-UNO2484
I/O Interface Displays 1 x Full-HD HDMI, 4 x Ultra-high HDMI (4K), 1 x Ultra-high Display Port (4K)
LAN 2x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
Memory Memory 8 GB DDR4
Storage Type Diskless
System Hardware Ethernet Intel i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802, Intel i219-IT GbE
Graphics Engine Intel® HD Graphics 520/ AMD Radeon™ Embedded GPU
Processor 6th Gen Intel Core i3-6100U, 2.3GHz 3M Smartcache
I/O USB 4 x USB3.0, 4 x USB2.0
General Mounting Stand,Wall
Power Input 10 ~ 36 VDC
Dimensions ( W x D x H ) 200 x 140 x 70 (7.8" x 5.6" x 2.8")
Certification CE, FCC Class A, UL, CCC, BSMI
Environment Operating Temperature -20 ~ 60°C (-4 ~ 140°F)
Environmental Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)









* Product image is an approximate guide only.
