ESRP-CMS-UNO2362
Centralize Visualization for Shop Floor Working Station


Main Features

  • Minimize downtime cost with diskless platform
  • Control multi-tasking visualization remotely
  • Maintain numerous PCs with centralized management





Introduction
Edge visualizer serves as a diskless workstation, storing data on the server for significantly reduced costs.Edge visualizer supports split screen (up to 16 sections) and scaling functionality with a virtual keyboard and high-resolution (3840 x 2160) displays that enable users to monitor every aspect of production.Edge visualizer with ACP ThinManager uses network booting for visualizing production processes from the server to each edge client simultaneously, streamlining installation and maintenance.





Specifications
Part Number ESRP-CMS-UNO2362
I/O Interface Serial Ports 4 x USB 2.0 compliant, 1 x RS-232, DB9, 1 x RS-485, DB9
LAN 2 x RJ45, 10/100/1000 Mbps (Built-in switch for daisy chaining supports 1 IP address only)
Displays 1 x DisplayPort 1.1, supports 1920x1200 (HD 6250) @ 30 bpp ; 1 x HDMI v1.3, supports 1920x1080p @ 36 bpp
Memory Memory 2 GB DDR3
Storage Type Diskless
System Hardware Ethernet Realtek RTL8111E, Marvell 88E6172 Giga Ethernet switch with daisy chain technology
Graphics Engine AMD Radeon™ HD 6250 DirectX® 11 graphics with UVD 3.0 2D/3D Accelerator
Processor AMD® G-series T40E 1.0GHz dual core, 512MB
General Mounting Stand, Wall, VESA (Optional)
Power Input 24 VDC ±15%
Dimensions ( W x D x H ) 190 x 107 x 47 mm (7.5 x 4.2 x 1.8 in)
Certification CE, FCC Class A, UL, CCC, BSMI
Environment Operating Temperature -10 ~ 60°C (14 ~ 140°F)
Environmental Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)

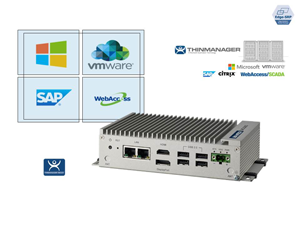

* Product image is an approximate guide only.
