Products > Advantech > WebAccess Software & Edge SRP > Edge Visualizer

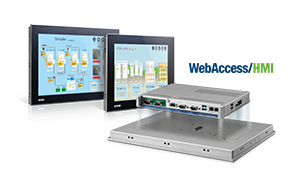

ESRP-HMI-TPCB200

Machine Visualization with Various Display Size

Main Features

Provides complete HMI functionality
Supports 450 PLC communication protocols for excellent connectivity
Various display module sizes for diverse visualization applications

Introduction

Edge SRP/Visualizer comprises three co-created solutions - ACP ThinClient, WebAccess/ SCADA, and WebAccess/ HMI – to support diverse visualization applications in centralized control rooms, production areas, and directly on machines.

Specifications
Part Number		ESRP-HMI-TPCB200
General	OS Support	Microsoft Windows10 IoT 2016 Enterprise LTSB (64 bit)
	Mounting	Stand and wall
	Power Input	24 VDC ± 20%
	Temperature (Operating)	0 ~ 50 °C (32 ~ 122 °F)
	Temperature (Storage)	-30 ~ 70 °C (-22 ~ 158 °F)
	Dimensions ( W x D x H )	269 x 203 x 30 mm (10.6 x 8 x 1.2 in)
	Certification	CE, FCC Class A, CB, UL, CCC, BSMI, KC, EAC
Software	Control Software	WebAccess/HMI V2.1 1500 tags
System Hardware	CPU	Intel® Celeron® J3455 1.50GHz Processor
	Memory	4GB DDR3L
	Expansion Slots	1 x Full-size mini PCIe, supports GSM 11.11 stand SIM cards
	Storage	64 GB M.2 SSD
	I/O	2 x RS-232/422/485;2 x USB 3.0;2 x USB 2.0;1 x Audio line out;1 x DisplayPort
	LAN	2 x 10/100/1000 Base-T Ethernet
Display	Display Size	12.1 ~ 21.5” front display panel module with P-CAP multi-touch control(12.1” with 5-wire resistive touch control)
