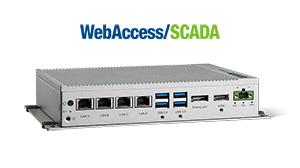

ESRP-SCA-UNO2484
Process Visualization with Modular Box Platform


Main Features

  • Easy operation on any browser with 100% HTML5 web-based SCADA
  • Open interfaces and database connectivity ensures flexible integration
  • Reliable and continuous operation with SCADA redundancy





Introduction
Edge SRP/Visualizer comprises three co-created solutions - ACP ThinClient, WebAccess/ SCADA, and WebAccess/ HMI – to support diverse visualization applications in centralized control rooms, production areas, and directly on machines.





Specifications
Part Number ESRP-SCA-UNO2484
System Hardware Processor Intel® Core i5-7300U, 2.60 GHz
Expansion Slots 1 x full-size mPCIe slot for single stack version; 4 x full-size mPCIe slots for double stack version
General Operating System Microsoft Windows10 IoT 2016 Enterprise LTSB (64 bit)
I/O 4 x RS 232/422/485 4 x USB 3.0 1 x Audio Line-out
Mounting Stand, Wall, VESA (Optional), Din-rail (Optional)
Power Input 10 ~ 36 VDC
Dimensions ( W x D x H ) 200 x 140 x 40 mm (7.8 x 5.6 x 1.6 in)
Certification CE, FCC Class A, CB, UL, CCC, BSMI
Memory Memory Built-in 8GB DDR4 2133 MHz
Storage Type TR 128GB 2.5" SSD supporting -10~80°C wide temperature
I/O Interface Displays 1 x HDMI supports 1920x1080 @60Hz, 1 X DP supports 3840 x 2160 @30Hz
LAN 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
Environment Operating Temperature -20 ~ 60°C (-4 ~ 140°F)
Environmental Storage Temperature 40 ~ 85 °C (-40 ~ 185 °F)









* Product image is an approximate guide only.
