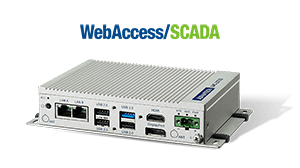

ESRP-SCA-UNO2372
Process Visualization with Modular Box Platform


Main Features

  • Easy operation on any browser with 100% HTML5 web-based SCADA
  • Open interfaces and database connectivity ensures flexible integration
  • Reliable and continuous operation with SCADA redundancy





Introduction
Edge SRP/Visualizer comprises three co-created solutions - ACP ThinClient, WebAccess/ SCADA, and WebAccess/ HMI – to support diverse visualization applications in centralized control rooms, production areas, and directly on machines





Specifications
Part Number ESRP-SCA-UNO2372
System Hardware Processor Intel Celeron Quad Core J1900 2.0 GHz
Expansion Slots 2 x Full-size mPCIe
General Operating System Microsoft Windows10 IoT 2016 Enterprise LTSB (64 bit)
I/O 4 x RS232/422/485 1 x USB 3.0, 3 x USB 2.0 Compliant
Mounting Stand, Wall, VESA (Optional), Din-rail (Optional)
Power Input 10 ~ 36 VDC
Dimensions ( W x D x H ) 150 x 105 x 35mm (5.8" x 4.2" x 1.4")
Certification CE, FCC Class A, CB, UL, CCC, BSMI
Memory Memory 4 GB of DDR3 RAM
Storage Type TR 128G mSATA SSD supporting -40~90°C wide temperature
I/O Interface Displays 1 x HDMI supports 1920x1080p @60Hz 1 x DisplayPort supports 2560x1440p @60Hz
LAN 2x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
Environment Operating Temperature -20 ~ 60° C (-4 ~ 140° F)
Environmental Storage Temperature 40 ~ 85 °C (-40 ~ 185 °F)









* Product image is an approximate guide only.
