ESRP-CNC-UNO1372
CNC Machine Monitoring Smart Box


Main Features

  • Supports multiple CNC protocols for data conversion
  • Improves productivity with data-driven decision making
  • Enables machine-to-intelligence solutions





Introduction
Embedded with WebAccess/CNC software, terminals can serve as a bridge between legacy and new machines to enable cross-factory machine data collection and conversion.Collected data provides a valuable overview of work progress, production line availability, and machine operating history for faster troubleshooting. Advantech’s intelligent CNC services are built on an industrial cloud-based platform that can be easily connected to multiple CNC machines to enable centralized data management.





Specifications
Part Number ESRP-CNC-UNO1372
System Hardware LED Indicators LEDs for Power, RTC battery, LAN (Active, Status), COM (Tx/Rx), HDD, Programmable LED
Expansion Slots 1 x Full-size mPCIe slot for wireless module
General Memory 4 GB DDR3L
CPU Intel® Celeron® J1900 (2 GHz)
Mounting DIN-rail
Power Input 10 ~ 36 VDC
Dimension(W x D x H) 65 x 105 x 150 mm (2.55 x 4.13 x 5.90 in)
Certification CE, FCC, CCC, BSMI, UL
Storage SSD 64 GB
I/O Interface LAN 2x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
Serial Ports 4 x RS-232/422/485, 1 x DB9, 3 x USB 2.0, 1 x USB 3.0, 4 x DI/O
Displays HDMI: 1920x1080 @ 60HZ, 1xDP, supports 2560x1440 @60Hz
Operating System OS Microsoft Windows10 IoT Enterprise LTSB
Environmental Operating Temp. -20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature 40 ~ 85 °C (-40 ~ 185 °F)

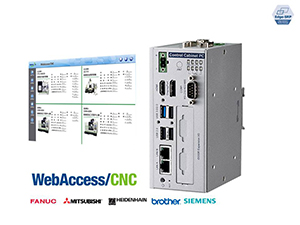

* Product image is an approximate guide only.
* รูปสินค้าเป็นเพียงภาพตัวอย่าง ซึ่งอาจมีรายละเอียดแตกต่างจากสินค้าจริงที่จำหน่าย
