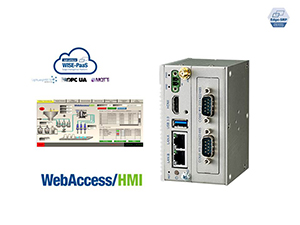

ESRP-PCS-UNO2271

Equipment Connectivity Data Gateway

Main Features

Supports various PLC protocol drivers for data conversion
Enabling data visualization for real-time monitoring
Bridges the gap between OT and IT

Introduction

This EdgeSRP allows users to easily acquire 100% of equipment data through 450 PLC drivers, self-defined communication protocols and a distributed digital I/O module. Equipment data is available for OT/IT system integration via Modbus/ OPC UA/ MQTT with visible production information, optimized production profiles and more.

Specifications
Part Number		ESRP-PCS-UNO2271
System Hardware	Storage	32 GB eMMC
	Expansion Slots	Full-size Mini PCI-E
	LED Indicators	LEDs for Power, HDD, LAN (Active, Status), RTC Battery low
WebAccess/HMI V2.1	Number of tags	1500
Environment	Operating Temperature	0 ~ 50° C (32 ~ 122° F)
Environment	Storage Temperature	- 20 ~ 70°C ( -4 ~ 158°F)
General	Dimensions ( W x D x H )	100 x 70 x 65 mm (3.9" x 2.8" x 2.6")
	Power Requirements	10 ~ 30 VDC
	Certifications	CE, FCC, UL, CCC, BSMI
	Mounting	Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional)
Network	LAN	2 x RS-232, 10/100/1000 Mbps BASE-T
I/O Interface	USB	1 x USB 3.0
	Displays	1 x HDMI, supports 1920 x 1080 @ 60Hz
	LAN	2 x RJ45 LAN, 2 x RS-232/422/485
Operating System	OS	Microsoft Windows10 IoT Enterprise LTSB
Memory	Memory	4 GB of DDR3 RAM
System	CPU	Intel® Atom™ dual core E3825 (1.33 GHz)
