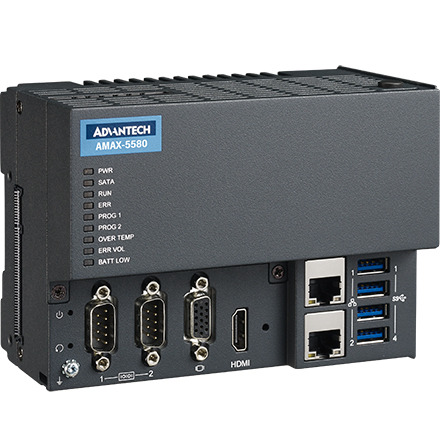

Main Features

• 6th generation Intel® Core™ i7/i5/Celeron processors up to 2.6 GHz with 4GB/8GB DDR4 memory
• 2 x GbE, 4 x USB 3.0, 2 x RS-232 /422/485, 1 x VGA, 1 x HDMI
• Dual power input with alarm output
• Compact and fanless design for DIN-rail mount in Control cabinet
• Maximum 4 expansion capability on left side for AMAX-54XX series module
• Wireless mPCIe module support for 3G/LTE/Wifi/GPS
• Chassis grounding protection
• Independent resource on Intel i210 GbE for better EtherCAT performance
• Upstream LAN redundancy (Intel Teaming Function)
