Products > Advantech > Intelligent Connectivity > PCI-bus Communication Cards (PCI-1600 Series)

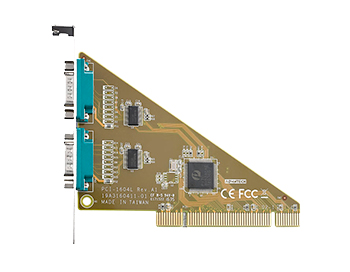

PCI-1604L

2-port RS-232 PCI Communication Card

Main Features

PCI bus 2.2 compliant

Speeds up to 921.6 kbps for extremely fast data transmission

Level 4 ESD protection (air 15 KV , contact 8 KV)

2 x RS-232 ports

128-byte FIFO

Supported operating systems: Windows XP/7/8/10, and Linux

Operating Temperature -20 ~ 60°C

Introduction

The PCI-1604L is an 2-port RS-232 and compatible with the PCI 2.2 bus specification, The card provides 1 KV EFT protection , 8KV ESD protection and have many functions such as high transmission speed of 921.6 kbps; The card can work under a tough environment with -20 ~ 60°C operating temperature. PCI-1604L is an economical communication card for users who need to control several RS-232 devices.

Specifications
Part Number		PCI-1604L-AE
Communications	Ports	2
	Data Bits	5,6,7,8
	FIFO	128 bytes
	Parity	None, Even, Odd, Mark and Space
	Speed	50 bps ~ 921.6 kbps
	Stop Bits	1,1.5,2
	Data Flow Control	RTS/CTS, Xon/Xoff
	Serial/CAN/GPIB/USB	RS-232
Environment	Operating-Temperature	-20 ~ 60°C
	Operating Humidity	5 ~ 95 % RH, non-condensing
	Storage Temperature	-25 ~ 85°C (-13 ~ 185°F)
General	Bus	PCI
	Connectors	2 x Male DB9
	Power Consumption	200mA @ +3.3V (typ.)
	Certifications	CE, FCC, RoHS
	OS Support	Windows XP/7/8/10, and Linux
	Dimensions	119.91 x 83.06 mm (4.72" x 3.27")
Protection	ESD Protection	15KV (air), 8KV (contact)
	Surge Protection	-
	Isolation Protection	-
	EFT Protection	1 KV
Software	Bundled Software	ICOM Tools
