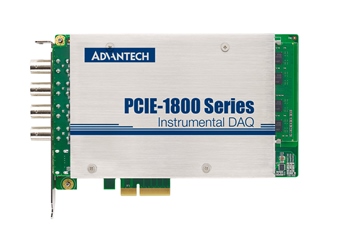

PCIE-1840

16-bit, 4-ch, high speed up to 125/80 MSPS DSA card

Main Features

4 simultaneous analog inputs, up to 125MHz, 16-bit resolution
500MHz Time Interleaved Sampling
Non-stop data streaming capable
2 GB on-board memory
1M or 50 Ohm selectable input impedance
On-Board tunable anti-aliasing filter
AC/DC Coupling

Introduction

The PCIE-1840 high-speed digitizers feature four 125 MS/s simultaneously sampled input channels with 16-bit resolution, 100 MHz bandwidth, and up to 2 GB of memory in a PCIE device.

Specifications
Part Number		PCIE-1840-AE	PCIE-1840L-AE
Power Requirement	Power Consumption	Typical: +3.3 V @ 1.75 A, +12 V @ 1.1 A; Maximum: +3.3 V @ 2A, +12 V @ 1.4 A	Typical: +3.3 V @ 1.75 A, +12 V @ 1.1 A; Maximum: +3.3 V @ 2A, +12 V @ 1.4 A
General	OS Support	32-bit/64-bit Windows 7/8/10	32-bit/64-bit Windows 7/8/10
	Dimensions	168 x 99 mm ( 6.6 x 3.9in.)	168 x 99 mm ( 6.6 x 3.9in.)
	Bus	PCIe	PCIe
	I/O Connectors	4 x BNC connector (for AI); 1 x HDMI connector (for Ext. clock and trigger)	4 x BNC connector (for AI); 1 x HDMI connector (for Ext. clock and trigger)
	Operating Temperature	0 ~ 50°C (32 ~ 122°F)	0 ~ 50°C (32 ~ 122°F)
	Programming Language	C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi, Java,Matlab,Qt	C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi, Java,Matlab,Qt
Analog Input	Sampling Rates(S/s)	125 M	80 M
	Bipolar Inputs (V)	±10, 5, 2, 1, 0.2,0.1	±10, 5, 2, 1, 0.2,0.1
	Channels	4	4
	Type	Simultaneous Sample	Simultaneous Sample
	Resolution(Bits)	16	16
	Input Impedance	50 O / 1M O; For 1 MO: AC Coupling /DC Coupling	50 O / 1M O; For 1 MO: AC Coupling /DC Coupling
	Trigger Mode	Start trigger, Delay to Start trigger, Stop trigger, Delay to Stop trigger	Start trigger, Delay to Start trigger, Stop trigger, Delay to Stop trigger
	Overvoltage Protection	30 Vp-p	30 Vp-p
