Products > Advantech > Remote I/O&Wireless Sensing Modules > Industrial Cat. NB1/Cat. M1 Wireless I/O Module

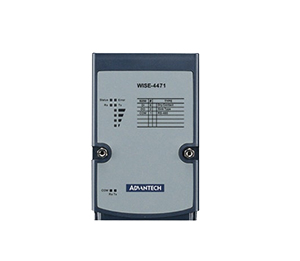

WISE-4471

Cat. NB1/Cat. M1 Wireless I/O Module

Main Features

Global coverage of Cat. NB1 and Cat. M1 frequency bands
Application-ready I/O combination with optional IP65 I/O
Wide voltage power input with 10 ~ 50VDC
Data buffered function with time stamp reducing data lost
Fast and easy deployment to reduce operation cost
Supports direct cloud service for IoT integration
Support MQTT, CoAP & LwM2M protocol

Introduction

Cat. NB1 and Cat. M1 feature low power consumption and utilize LTE networks based on licensed spectrum bands that are optimized for connectivity to machines, assets, and sensors to unlock a range of IoT applications.

Specifications
Part Number		WISE-4471-UA
General	Power Input	10 ~ 50 VDC external power
	Mounting	DIN 35 rail, wall, pole, and stack
	SIM	3FF/Micro SIM
	Connector	Plug-in screw terminal block (I/O and power)
	LED Indicators	Status, Error, Tx, Rx, Signal Level
	Dimensions (W x H x D)	70 x 112 x 38 mm
	Certification	CE(RED), NCC, FCC, IC
Wireless Interface	Frequency Band	2, 3, 4, 5, 8, 12, 13, 20, 28
	Antenna Type	Internal
	3GPP Standards	R13 LTE Cat M1 / NB1
