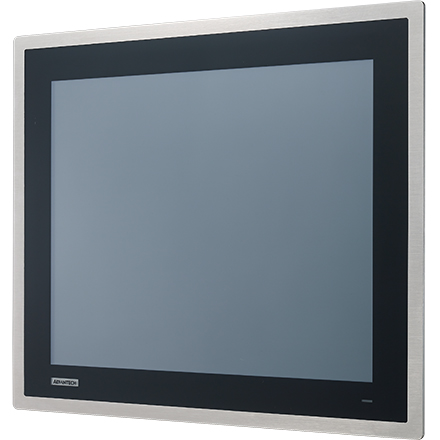

FPM-815S

15" XGA Industrial Monitor with Resistive Touch Control, Direct VGA, DP Ports, and 304 Stainless Steel Front Bezel

Main Features

15" XGA TFT LED LCD with 70K backlight lifetime

Robust design with 304 stainless steel front bezel and anti-rust coated SPCC rear cover

Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)

Increased reliability with enhanced 5-wire resistive touch sensor

Anti-glare screen with tempered glass and IP66-certified front panel

Direct VGA & DP video input interface

OSD control pad with lockable function on rear panel

Supports panel, VESA, wall, desktop, and stand mounting

Specifications
Part Number		FPM-815S-R6AE
General	Button Controls	OSD (Onscreen Display) control pad on rear cover
	Certifications	CE, FCC, CB, UL, BSMI
	Dimensions (W x H x D)	405.3 x 329.4 x 59.3 (15.96 x 12.97 x 2.33 in)
	Enclosure	Front panel: Aluminum with coating, Rear cover: SECC coating chassis
	Mounting	Panel Mount / VESA Mount
	Power Input	Phoenix Jack: 24 VDC input
	Power Consumption	12 W
	Video Port	VGA & DP
	Weight (Net)	5.4Kg (11.90lb)
Display	Display Type	XGA TFT LCD with LED backlight
	Backlight Type	LED
	Display Size	15"
	Max. Resolution	1024 x 768
	Max. Colors	16.7M
	Viewing Angle (H/V°)	176/176
	Luminance (cd/m2)	500
	Backlight Life (hrs)	70,000 hrs
	Contrast Ratio	2500:1
Touchscreen	Sensor	AMT
	Driver	Penmount 6000
	Type	5-wire Resistive with enhanced ITO film
	Interface	USB
	Lifespan	36 millions times with a silicone rubber of R8 finger, hitting rate is calculated as being 250g at 2 times per second
	Light Transmission	> 80%
	Power Consumption	+5 V @ 100 mA
	OS Support	Windows 2000, XP, Vista, 7, 8, 8.1, 10, CE and Linux
		Linearity
Environment	Operating Temperature	-20 ~ 60°C (-4 ~ 140°F)
	Humidity (Storage)	10 ~ 90% non-condensing
	Storage Temperature	-30 ~ 70°C (-22 ~ 158°F)
	Vibration	5 ~ 500 Hz, 1 Grms (Operating, Random)
	Waterproof	Front panel IP66
	Shock	11ms, 10G (Non Operating, Half Sine Wave)
