Products > Advantech > Data Acquisition (DAQ) > DAQ Cards > Analog Input

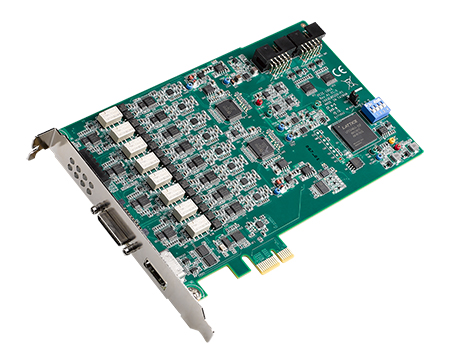

PCIE-1803

128 kS/s, 24-bit, 8-ch Dynamic Signal Acquisition PCIE Card

Main Features

8 simultaneously sampled analog inputs, up to 128 kS/s
24-bit resolution ADCs with -102 dB total harmonic distortion plus noise (THD+N)

Introduction

PCIE-1803 is a 24-bit, high-accuracy data acquisition PCI Express module specifically designed for sound and vibration-related applications. This module features built-in 2 mA excitation currents for IEPE sensors, such as accelerometers and microphones.

Specifications
Part Number		PCIE-1803-AE
Power	Power Consumption	Typical: +3.3 V @ 300 mA / +12 V @ 200 mA
General	OS Support	32-bit/64-bit Windows 7/8/10, and Linux
	Dimensions	168 x 99 mm ( 6.6 x 3.9in.)
	Bus	PCIe
	I/O Connectors	1 × 36-pin VHDCI (mini-SCSI), and 1 × HDMI
	Operating Temperature	0~70° C (32~158° F)
	Programming Language	C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt
Analog Input	Sampling Rates(S/s)	128 K
	Bipolar Inputs (V)	±1 V, ±2 V, ±5 V, ±10 V
	Channels	8
	Type	Simultaneous Sample
	Resolution(Bits)	24
	Trigger Mode	Start, delay to start, stop, or delay to stop trigger
	Overvoltage Protection	±24 V
TTL DI/O	Input Channels	1
TTL DI/O	Output Channels	2
