Products > Advantech > Intelligent Connectivity > Managed Ethernet Switches

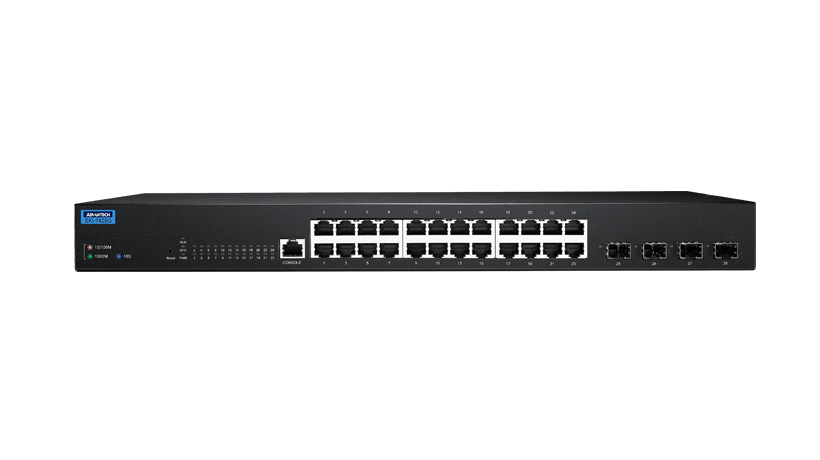

EKI-7428G-4X

24GE+4 10G SFP L2 Managed Switch

Main Features

24 Gigabit Ethernet ports and 4 10G SFP ports
0 to 60°C operating temperature range
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
IXM function enables f deployment
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D), MSTP

Introduction

The EKI-7248G-4X is equipped with 24 Gigabit Ethernet ports plus 4 10G SFP+ ports, supporting up to 60°C wide operating temperature against the harsh environment.

Specifications
Part Number		EKI-7428G-4X-AE
* Port Configuration	Total Port Number	28
* Port Configuration	Description	24GE + 4 SFP+ L2 Managed Switch
Certification	Ethernet Standard	IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3z, 802.3ae
	Vibration	-
	Freefall	-
	Shock	-
	EMS	-
	EMI	-
	EMC	EN 55032:2015+AC:2016 ClassA EN 61000-3-2:2014 Class A EN 61000-3-3:2013 EN 55035:2017 FCC Part 15, Subpart B
	Safety	LVD62368-1
Environment	Temperature (Max. Operating)	60°C (140°F)
	Temperature (Min. Operating)	0°C (32°F)
	Relative Humidity	-
	Temperature (Operating Range)	0 ~ 60°C (32 ~ 140°F)
	Humidity (Operating Range)	10 ~ 95%
	Temperature (Storage Range)	-40 ~ 70°C (-40 ~ 158°F)
Ethernet Communication	RJ45/SFP Combo Port Speed	-
	RJ45/SFP Combo Port Number	-
	Fiber Port Supports VDSL	NO
	Fiber Port Optical Mode	-
	Fiber Transmission Speed	1G/2.5G/5G/10G
	Fiber Port Number	4
	RJ45 Port Number	28
	Fiber Transmission Distance	Up to 100km
	Fiber Port Connector Type	SFP+
	Fiber Port Interface	SFP+
	RJ45 Transmission Distance	100m
	Ethernet Standard	-
	RJ45 Port Connector Type	RJ45
	RJ45 Transmission Speed	10/100/1000Mbps
Mechanism	Mounting (Panel)	-
	Enclosure (Plastic)	-
	Mounting (Pole Mount)	-
	Mounting (Stack)	-
	Mounting (Wall)	-
	Mounting (Rack Mount)	Yes
	Mounting (DIN-rail)	-
	Weight	-
	IP Rating	-
	Dimensions (W x H x D)	441 x 44 x 196 mm
	Enclosure (Metal)	Yes
MTBF	Method	-
MTBF	Time	-
PoE Information	Support PoE	-
	PoE Output	-
	PoE Budget	-
	PoE Port Number	-
Power	Redundant Dual Inputs	-
	Power Input (Battery)	-
	Power Input (PoE)	-
	Power Input (AC)	100~240VAC
	Power Operating Current	-
	Power Connector Type	-
	Power Input (DC)	-
	Power Consumption	-
Protection	Reverse Polarity	-
Protection	Overload Current	-
Switch Properties	Jumbo Frame	-
	Switch Fabric Speed	-
	Packet Buffer Size	-
	MAC Table Size	-
Warranty	Warranty Period	-
