Products > Advantech > Intelligent Connectivity > Industrial PoE Switches & Solutions

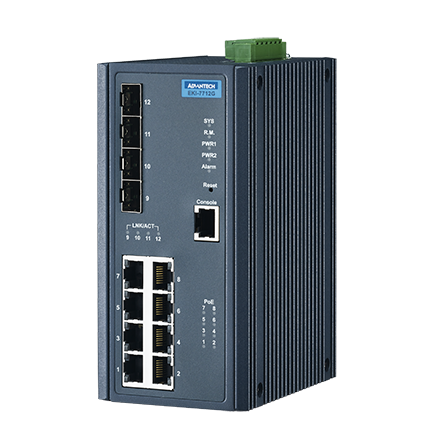

EKI-7712G-4FP

8GE PoE and 4G SFP Managed Ethernet Switch, IEEE802.3af/at, 46~57VDC

Main Features

8 x IEEE 802.3 af/at PoE Gigabit ports + 4 SFP ports
SFP socket for Easy and Flexible Fiber Expansion
Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
IXM function enables fast deployment
Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
NEMA TS2 for Traffic Control
EN50121-4 approval for Railway trackside deployment
Dual 48 VDC power input and 1 relay output

Introduction

EKI-7712G-4FP/4FPI supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712G-4FPI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.

Specifications
Part Number		EKI-7712G-4FP-AE
Interface (B)	Ports Number	12
Ethernet Communication	RJ45 Port Connector Type	8 x RJ45, 4 x SFP
	RJ45 Transmission Speed	10/100/1000Base-T(X)
	RJ45 Transmission Distance	100 m
	Fiber Transmission Distance	Up to 110km
Power	Power Input (DC)	48VDC
	Power Input (AC)	48 VDC
	Power Operating Current	0.25A @ 48Vdc (system)
	Power Consumption	12.1W (system)
	Power Connector Type	6-pin removable screw terminal ((power & relay)
	Reverse Polarity (X)	Present
Certification	Ethernet Standard	IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
	EMI	CE, FCC Class A
	Safety	UL 61010
	EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
	Shock	IEC 60068-2-27
	Freefall	IEC 60068-2-32
	Vibration	IEC 60068-2-6
* Port Configuration	Description	12 x 10/100/1000Base-T(X)
	Fiber Port Interface (X)	SFP
	Fiber Port Description (X)	4 x SFP(mini-GBIC) ports
PoE Information	PoE Port Number	8
Switch Properties	MAC Table Size	8K
	Packet Buffer Size	4.1M bit
	Switch Fabric Speed	24Gbps
	Jumbo Frame	9,216 bytes
Mechanism	Dimensions (W x H x D)	74 x 152 x 105 mm
	IP Rating	IP30
	Enclosure (Metal)	Metal
	Weight	1.1kg
	Mounting (X)	DIN-rail, Wall
Environment	Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
	Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)
	Relative Humidity	10 ~ 95%
MTBF	Time	1,001,782 hours
MTBF	Method	Telcordia(Relax), GB
Warranty	Warranty Period	5 years
